ASCD Steering Switch

  1. Disconnect ASCD steering switch.
  2. Check continuity between ASCD steering switch terminals 1 and 4 with pushing each switch.

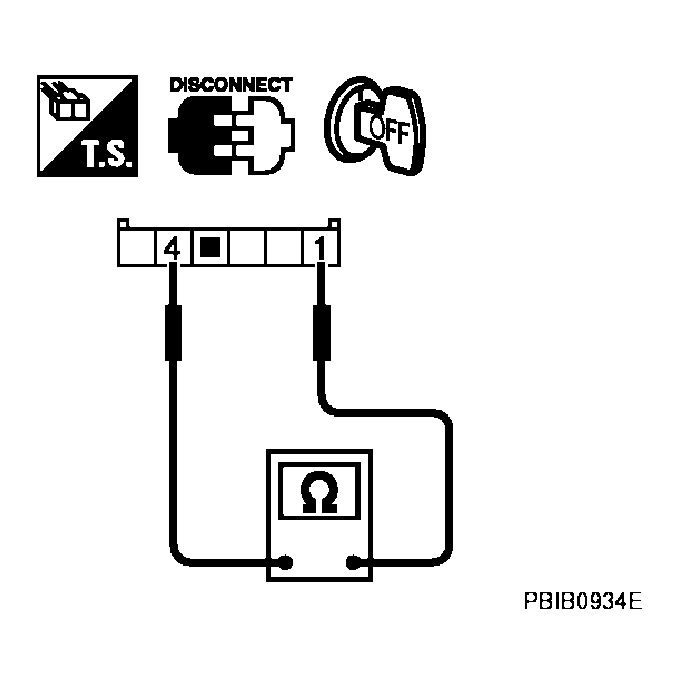

    3. Fig 1: Checking Continuity Between ASCD Steering Switch Terminals
    G04192123Courtesy of NISSAN MOTOR CO., U.S.A.
TERMINAL RESISTANCE SPECIFICATION

Switch Condition Resistance [Ω]
MAIN switch Pressed Approx. 0
Released Approx. 4, 000
CANCEL switch Pressed Approx. 250
Released Approx. 4, 000
RESUME/ACCELERATE switch Pressed Approx. 1, 480
Released Approx. 4, 000
COAST/SET switch Pressed Approx. 660
Released Approx. 4, 000
