With CONSULT-II

  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.

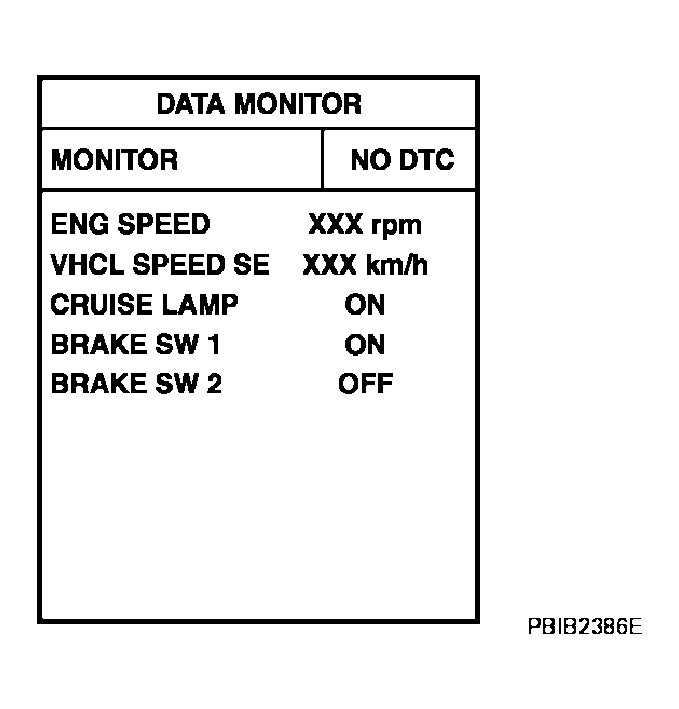

    3. Fig 1: CONSULT-II Display - DATA MONITOR
    G04192125Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    CONDITIONS SPECIFICATION

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position

    If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

    If 1st trip DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    CONDITIONS SPECIFICATION

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Shift lever Suitable position
    Driving location Depress the brake pedal for more than 5 seconds so as not to come off from the above-mentioned vehicle speed.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
