Throttle Control Motor Relay

  1. Apply 12V direct current between relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 5.

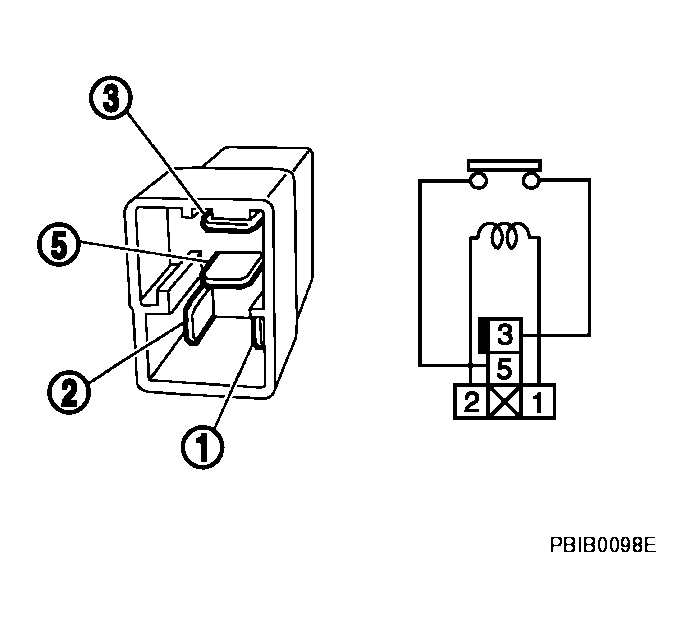

    Fig 1: Checking Continuity Between Relay Terminals 3 And 5
    G04192173Courtesy of NISSAN MOTOR CO., U.S.A.
    CONDITION CONTINUITY REFERENCE

    Conditions Continuity
    12V direct current supply between terminals 1 and 2 Yes
    No current supply No
  3. If NG, replace throttle control motor relay.
