How To Use This Information: Components: Notes

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

THE LARGE ILLUSTRATIONS are exploded views (See the following) and contain tightening torques, lubrication points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appropriate PARTS CATALOG.

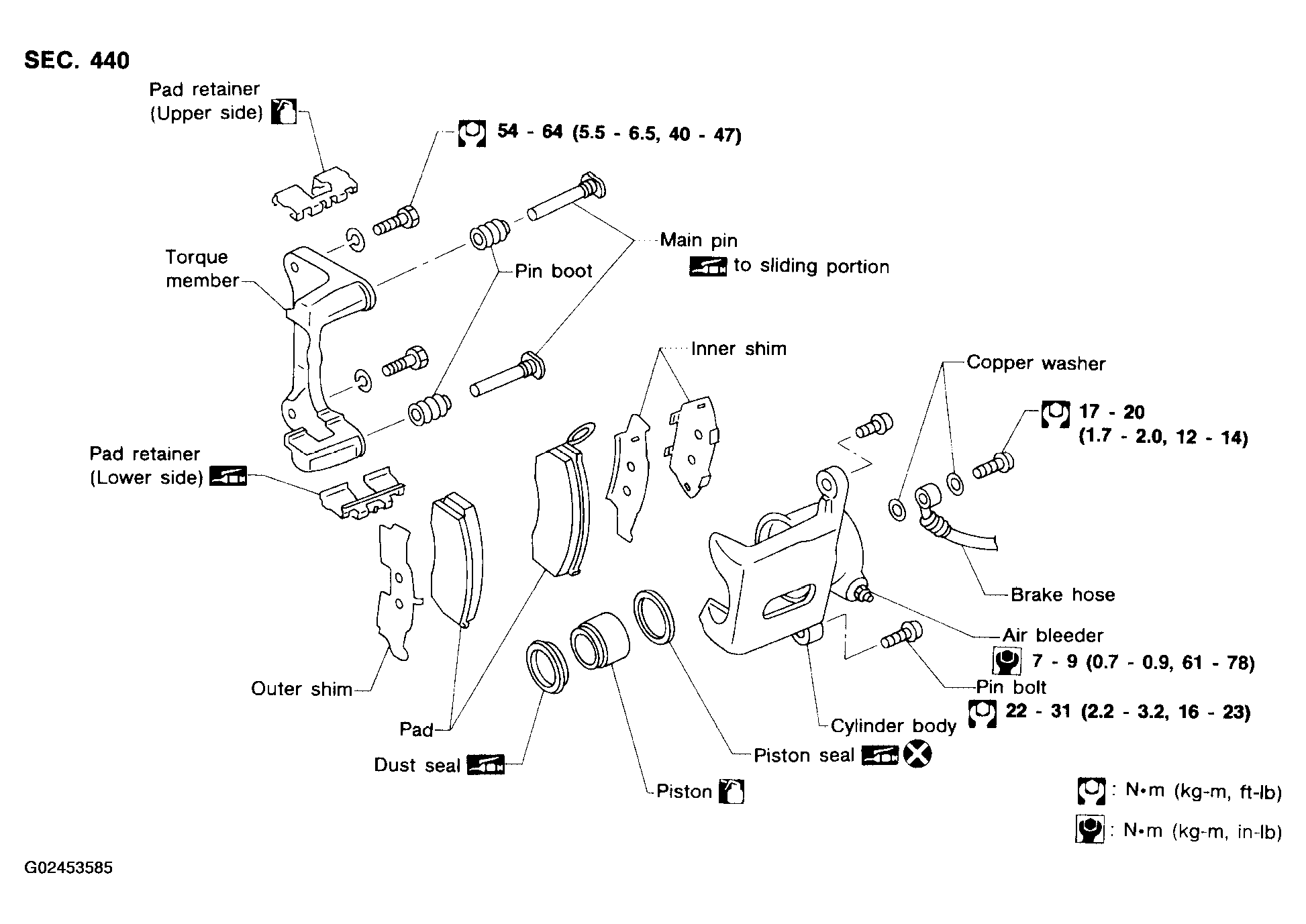

Fig 1: Component With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
