Oil Pressure Switch Check
WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

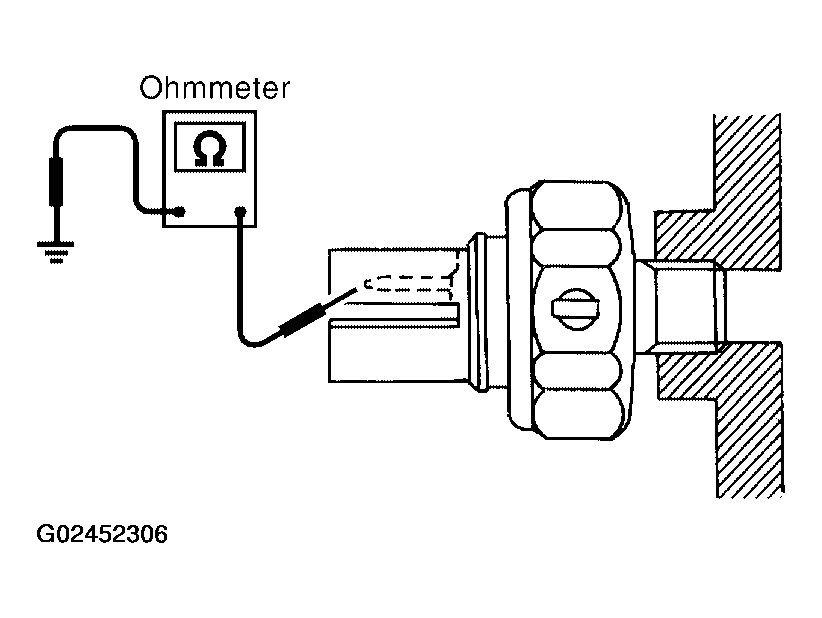

Check the continuity between the terminals of oil pressure switch and body ground.
OIL PRESSURE CONTINUITY CHECK
| Condition |
Oil pressure kPa (kg/cm2
, psi) |
Continuity |
| Engine running |
More than 10 - 20 (0.1 - 0.2, 1 - 3) |
No |
| Engine not running |
Less than 10 - 20 (0.1 - 0.2, 1 - 3) |
Yes |
Courtesy of NISSAN MOTOR CO., U.S.A.
