EVAP Control System Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Do not reuse the O-ring, replace it with a new one .
Install a vacuum pump to EVAP control system pressure sensor.

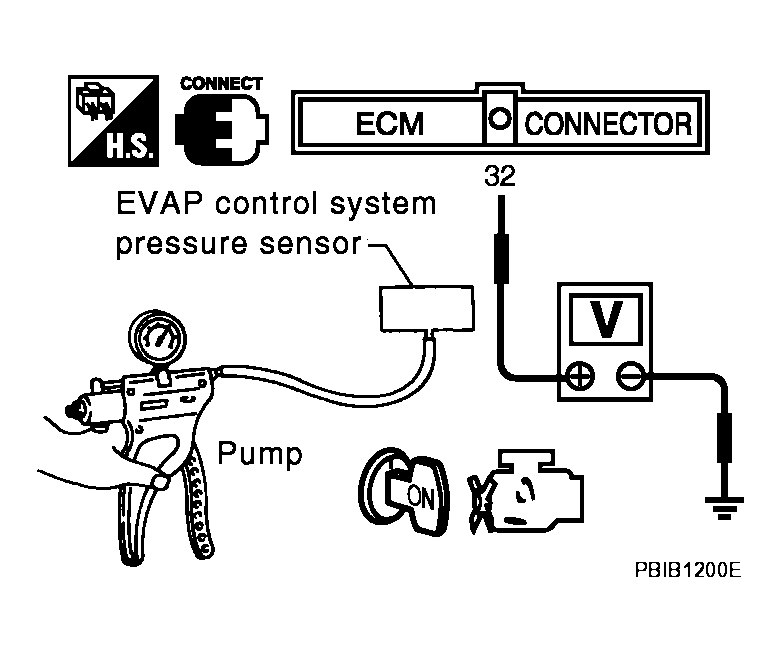

Fig 1: Installing Vacuum Pump To EVAP Control System Pressure Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.

TERMINALS VOLTAGE REFERENCE

Applied vacuum kPa (mmHg, inHg)	Voltage V
Not applied	1.8 - 4.8
-26.7 (-200, -7.87)	2.1 to 2.5V lower than above value

CAUTION:

Always calibrate the vacuum pump gauge when using it.
Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or pressure over 101.3 kPa (760 mmHg, 29.92 in Hg).
