Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

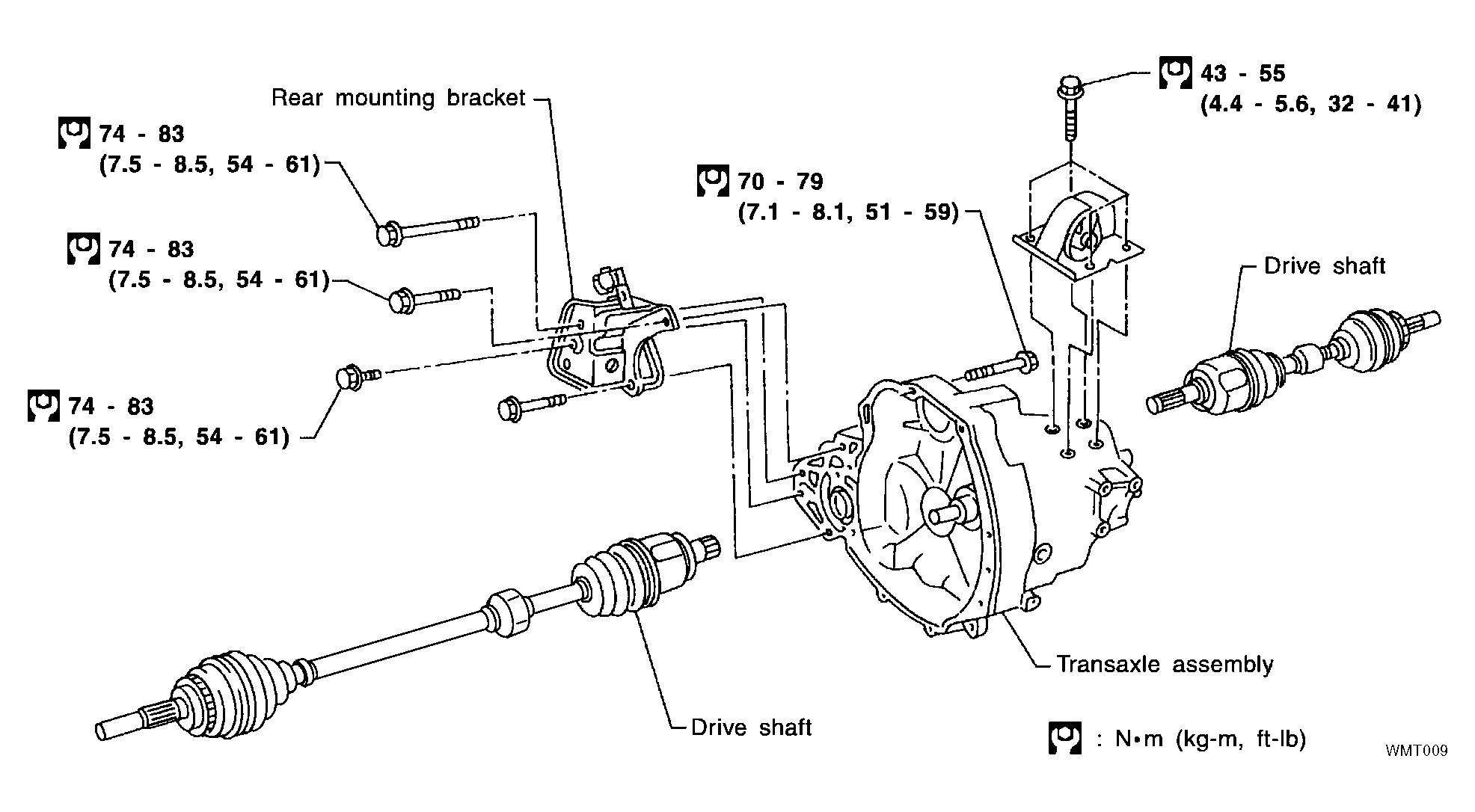

Fig 1: Transaxle Assembly With Torque Specifications
G04192440Courtesy of NISSAN MOTOR CO., U.S.A.
