Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.
Turn ignition switch ON.

Fig 1: Identifying Data Link Connector And Accelerator Pedal
Courtesy of NISSAN MOTOR CO., U.S.A.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens, sample screens are shown in illustration.)

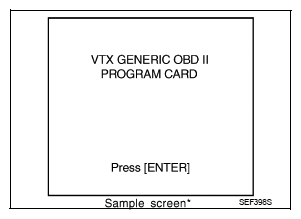

Fig 2: Generic Scan Tool - Press Enter
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker.

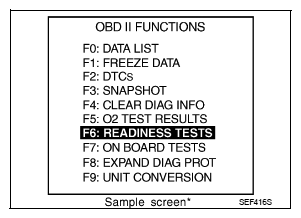

Fig 3: Generic Scan Tool - Reading Tests
Courtesy of NISSAN MOTOR CO., U.S.A.
