Ignition Timing

  1. Attach timing light to loop wire as shown.

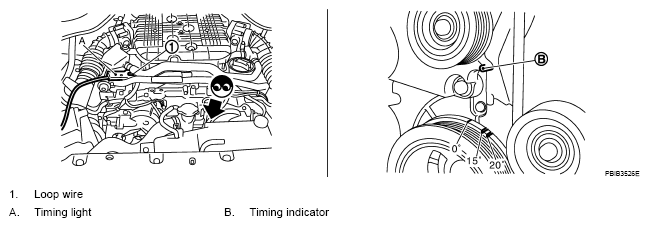

    Fig 1: Identifying Timing Mark, Loop Wire And Timing Indicator
    G04874823Courtesy of NISSAN NORTH AMERICA, INC.
  2. Check ignition timing.
