Circuit Diagram

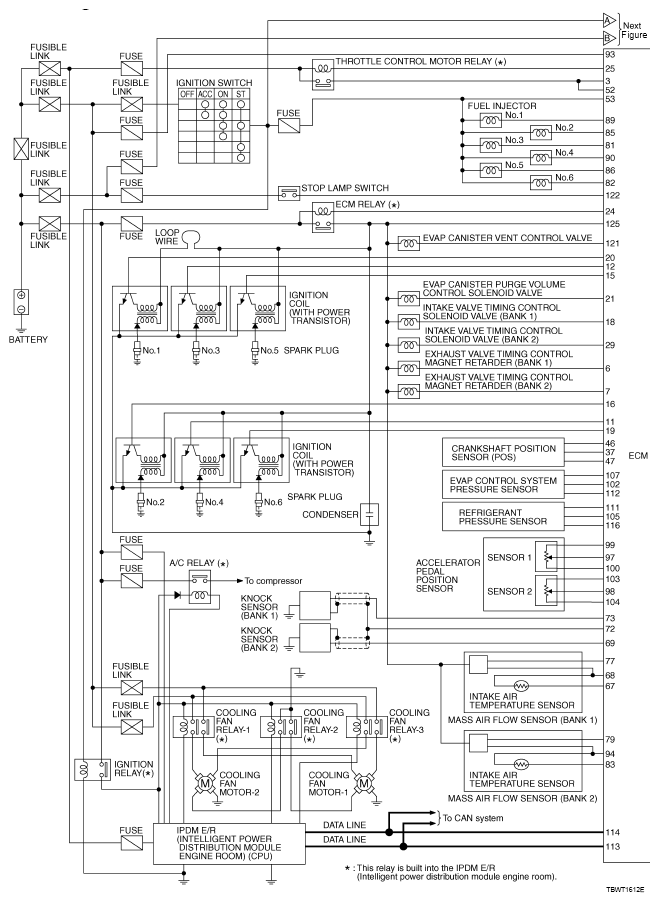

Fig 1: Engine Control - Circuit Diagram (1 Of 2)
G04874857Courtesy of NISSAN NORTH AMERICA, INC.

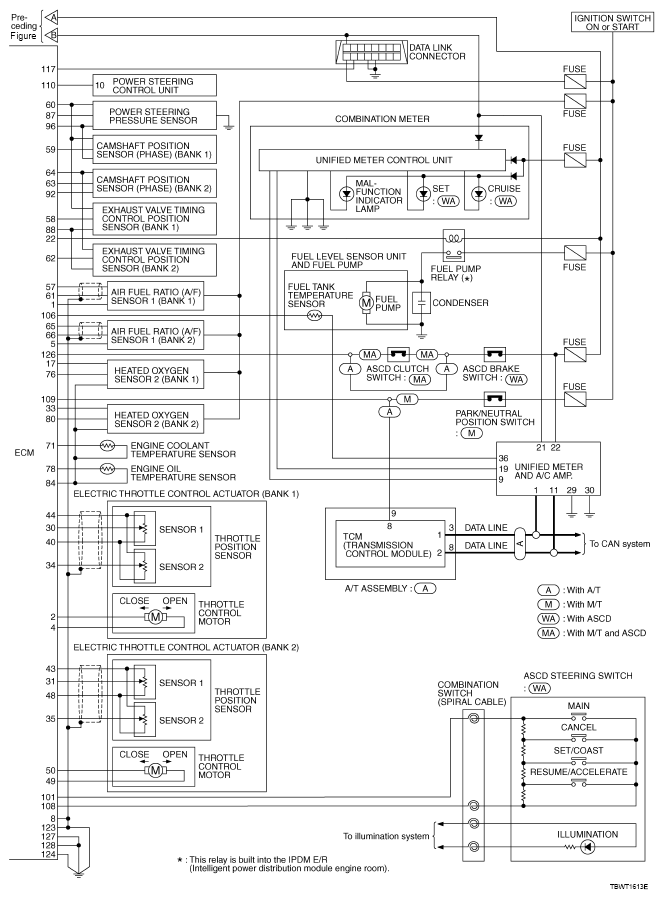

Fig 2: Engine Control - Circuit Diagram (2 Of 2)
G04874858Courtesy of NISSAN NORTH AMERICA, INC.
