Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector (1), which is located under LH dash panel near the hood opener handle.

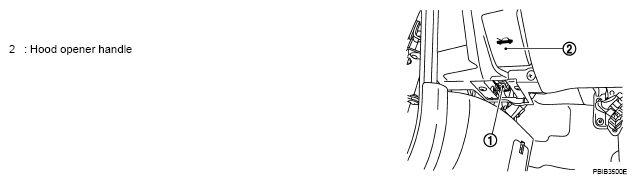

Fig 1: Identifying Data Link Connector And Hood Opener Handle
Courtesy of NISSAN NORTH AMERICA, INC.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens in this section, sample screens are shown.)

Fig 2: OBD II GST Screen Display - Enter
Courtesy of NISSAN NORTH AMERICA, INC.
Perform each diagnostic mode according to each service procedure.
For further information, see the GST Operation Manual of the tool maker .

Fig 3: OBD II Function Display - Readiness Test
Courtesy of NISSAN NORTH AMERICA, INC.
