Component Function Check

CHECK FUEL PUMP FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose (2) with two fingers.

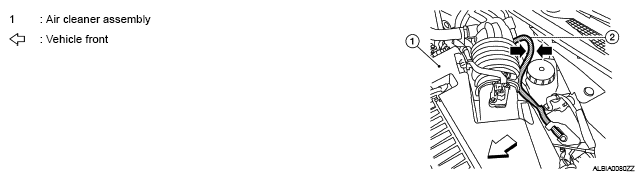

  Fig 1: Identifying Fuel Feed Hose And Air Cleaner Assembly

  Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.
Is the inspection result normal?

YES: INSPECTION END

NO: "DIAGNOSIS PROCEDURE ".
