Home
>>
Nissan-Datsun
>>
2007
>>
Altima Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Component Testing (Qr25DE) (Except For CALIFORNIA)
>>
On-Vehicle Repair
>>
EVAP Canister
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

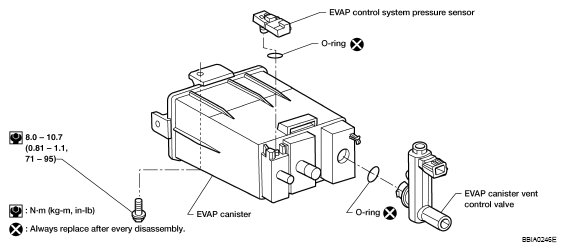

Fig 1: Exploded View Of EVAP Canister With Torque Specifications
