Symptom Table
SYSTEM-BASIC ENGINE CONTROL SYSTEM

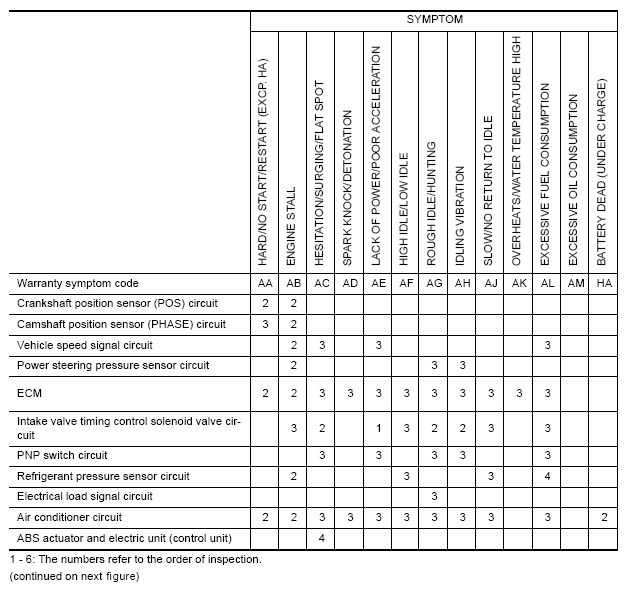

Fig 1: Engine Control System Symptoms Table (1 Of 2)

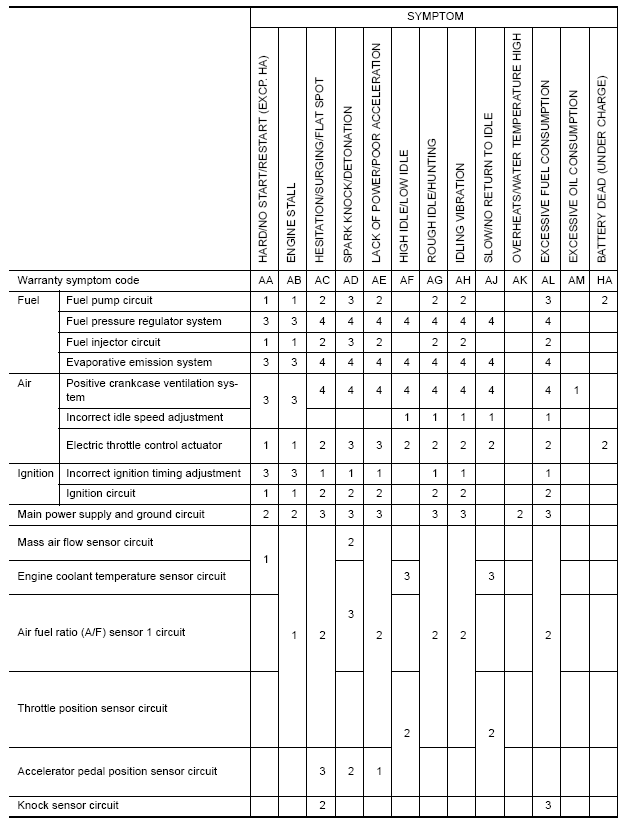

Fig 2: Engine Control System Symptoms Table (2 Of 2)
SYSTEM-ENGINE MECHANICAL & OTHER

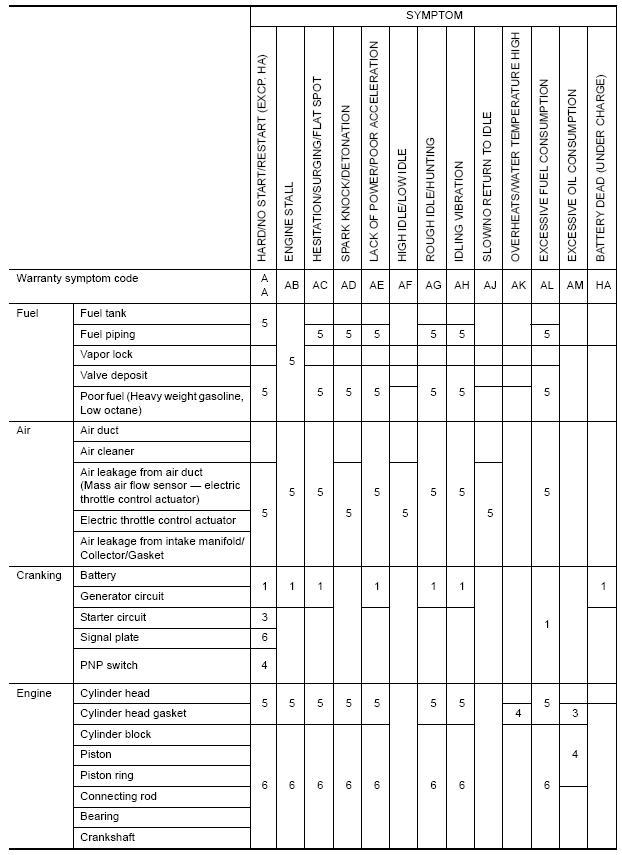

Fig 3: Engine Mechanical And Other Symptoms Table (1 Of 2)

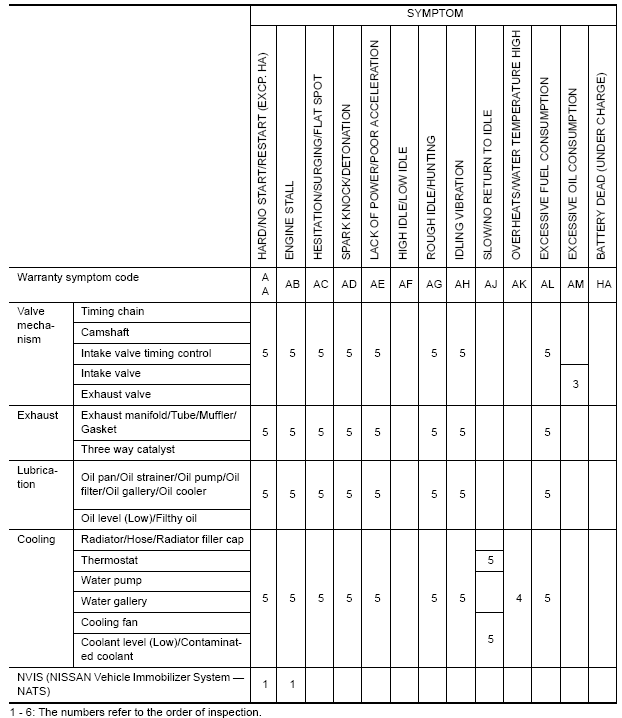

Fig 4: Engine Mechanical And Other Symptoms Table (2 Of 2)
