Component Parts Location

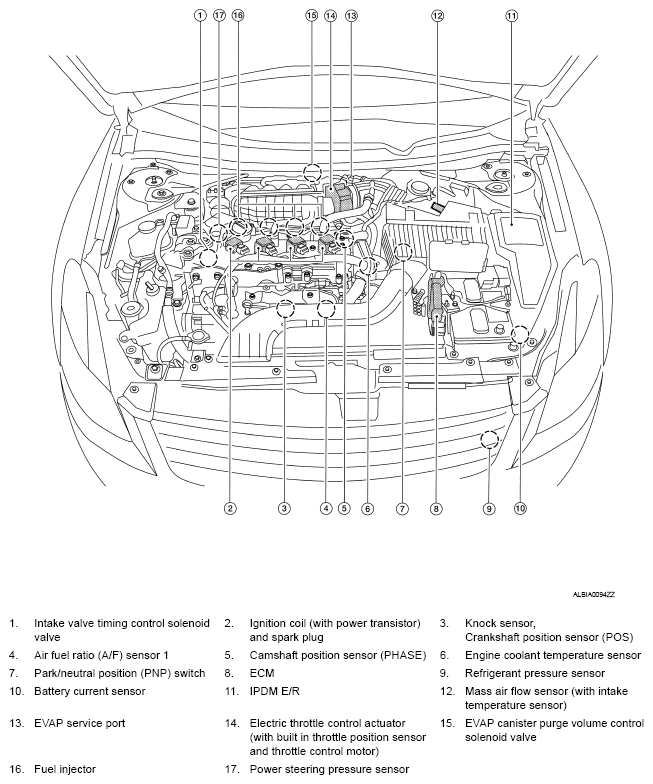

Fig 1: Identifying Engine Control System Components Location (1 Of 7)

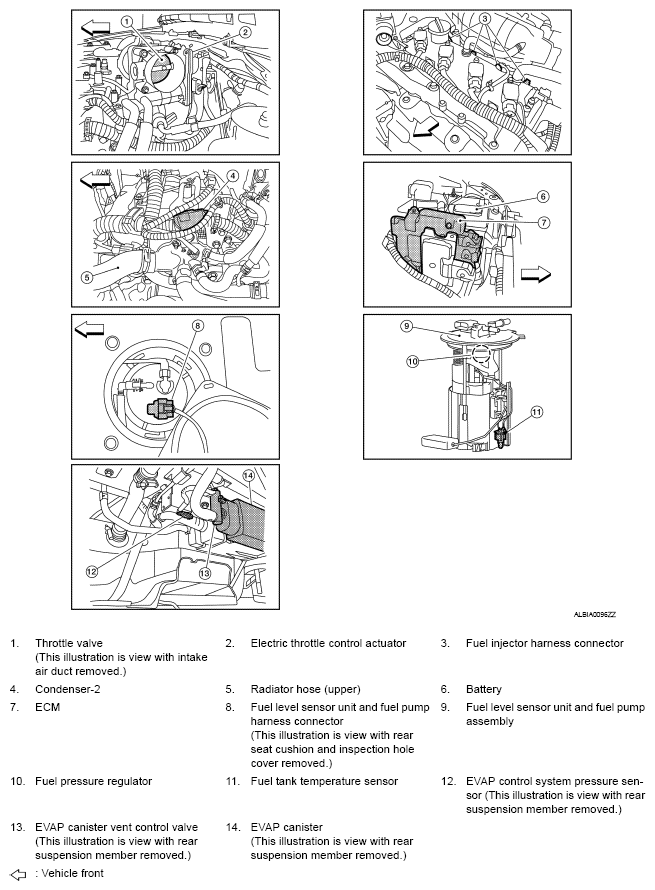

Fig 2: Identifying Engine Control System Components Location (2 Of 7)

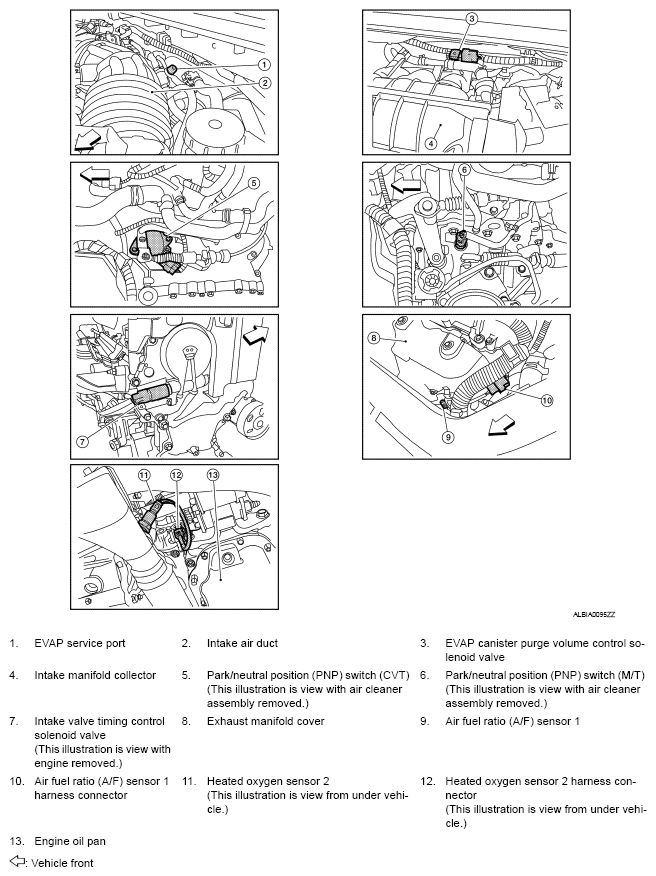

Fig 3: Identifying Engine Control System Components Location (3 Of 7)

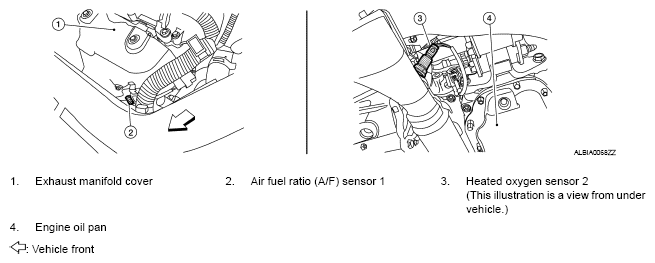

Fig 4: Identifying Engine Control System Components Location (4 Of 7)

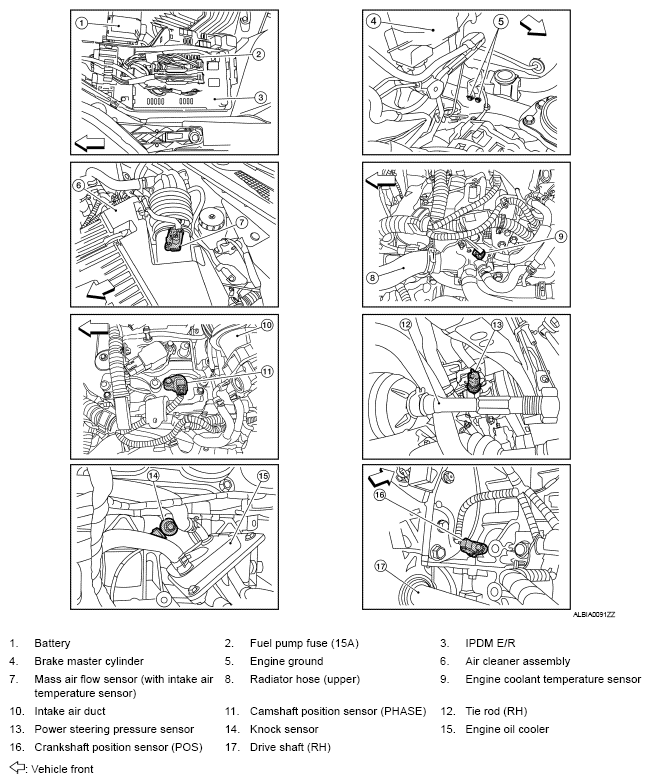

Fig 5: Identifying Engine Control System Components Location (5 Of 7)

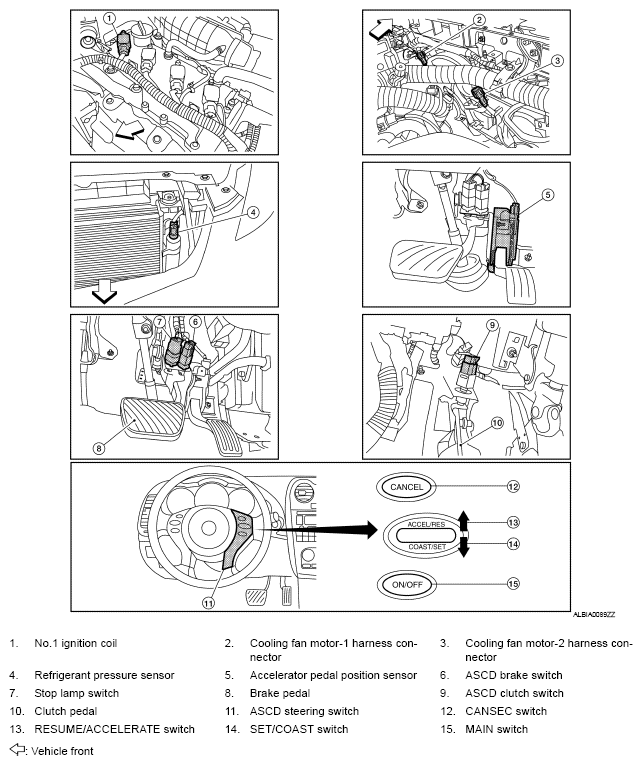

Fig 6: Identifying Engine Control System Components Location (6 Of 7)

Fig 7: Identifying Engine Control System Components Location (7 Of 7)
