Component Parts Location

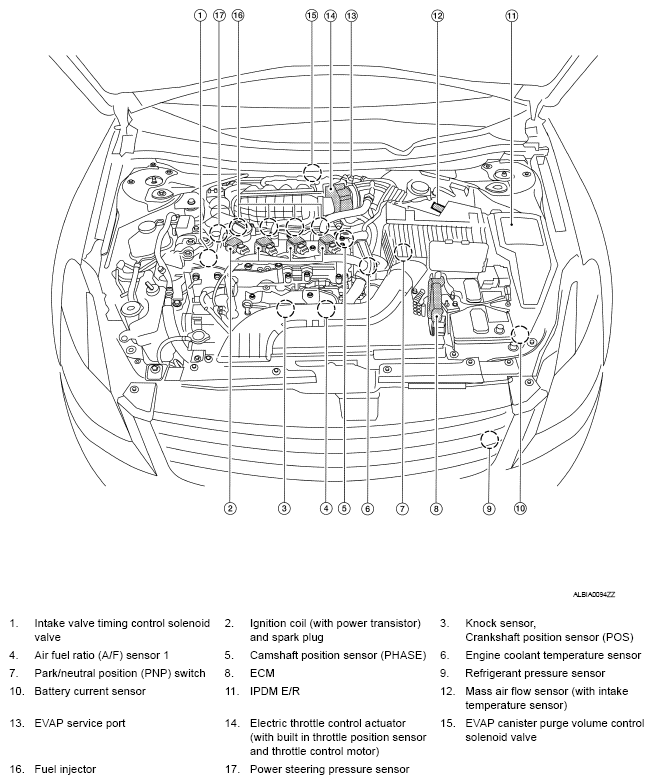

Fig 1: Identifying Intake Valve Timing Control Components Location (1 Of 7)

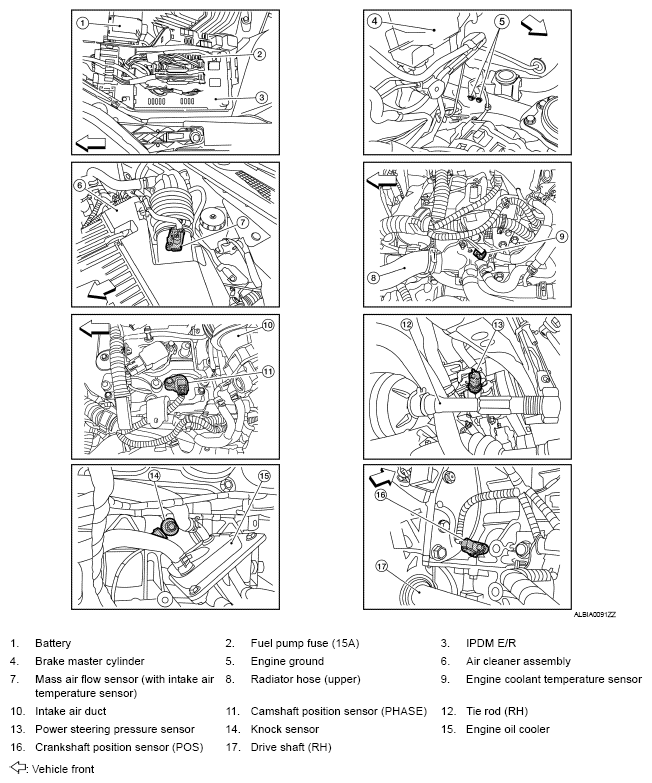

Fig 2: Identifying Intake Valve Timing Control Components Location (2 Of 7)

Fig 3: Identifying Intake Valve Timing Control Components Location (3 Of 7)

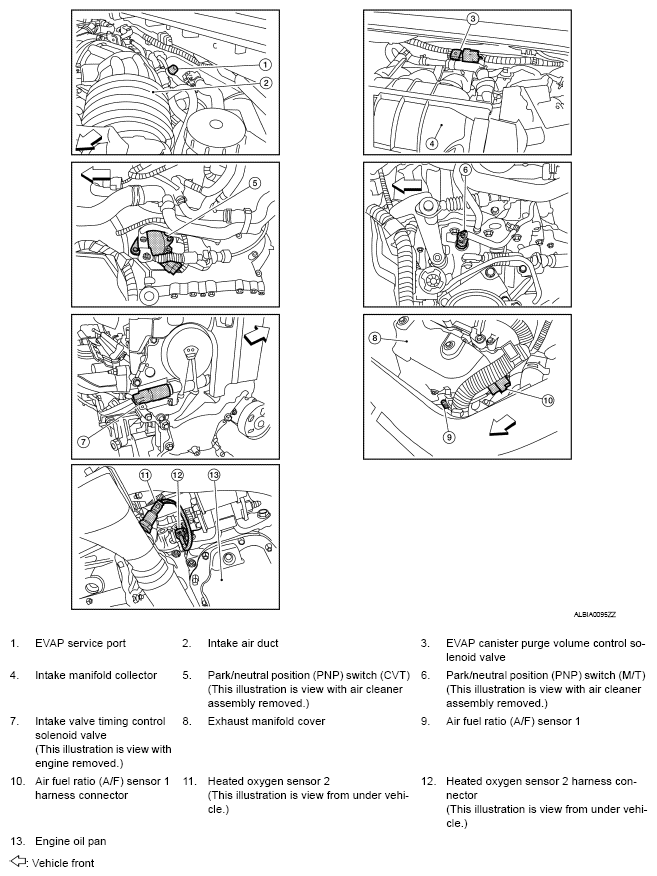

Fig 4: Identifying Intake Valve Timing Control Components Location (4 Of 7)

Fig 5: Identifying Intake Valve Timing Control Components Location (5 Of 7)

Fig 6: Identifying Intake Valve Timing Control Components Location (6 Of 7)

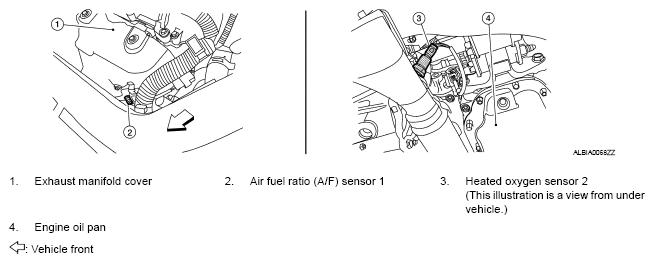

Fig 7: Identifying Intake Valve Timing Control Components Location (7 Of 7)
