Engine Control Component Parts/Control Systems Application

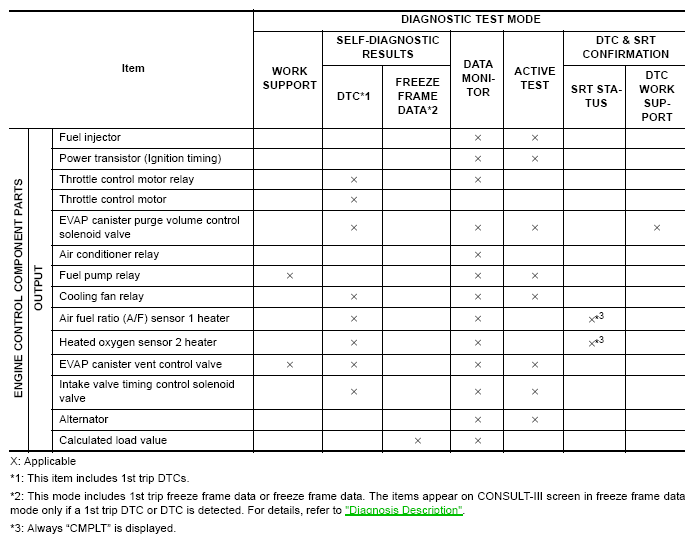

Fig 1: Items Diagnostic Test Modes Reference Chart (1 Of 2)

For Diagnosis Description, go to DIAGNOSIS DESCRIPTION .

Fig 2: Items Diagnostic Test Modes Reference Chart (2 Of 2)
