Final Drive

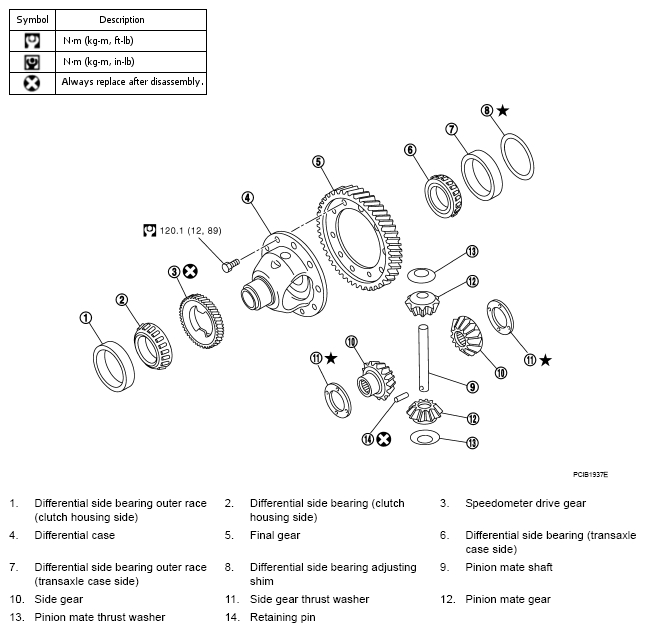

Fig 1: Exploded View Of Transaxle Assembly With Torque Specification (5 Of 5)
G04888861

Refer to "COMPONENTS " for the symbols in the figure.
