Shift Fork And Fork Rod

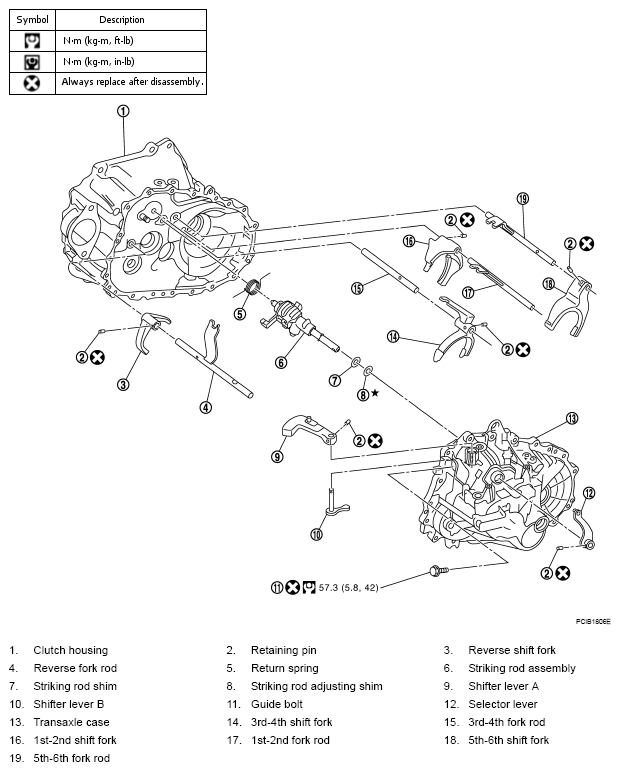

Fig 1: Exploded View Of Transaxle Assembly With Torque Specification (4 Of 5)
G04888860

Refer to "COMPONENTS " for the symbols in the figure.
