System-Basic Engine Control System

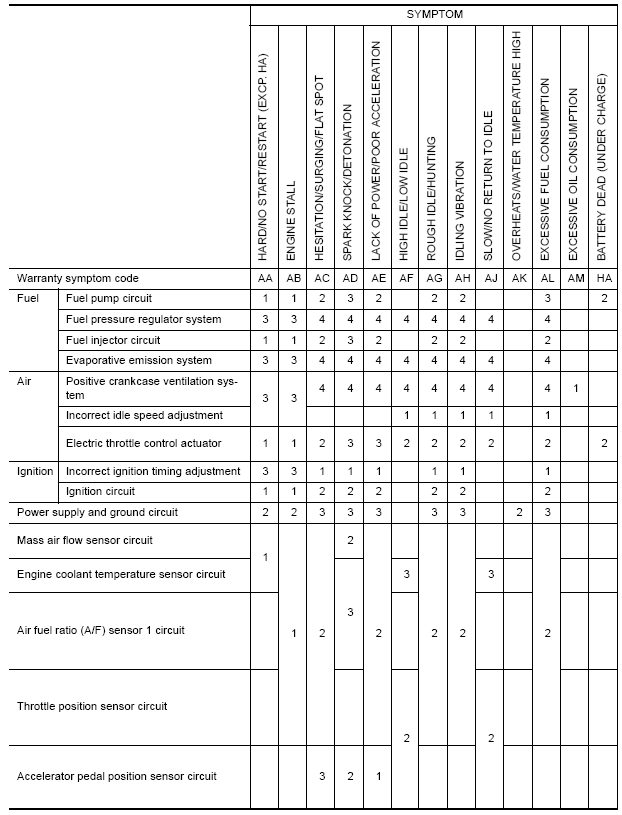

Fig 1: Symptom Chart For System Basic Engine Control System (1 Of 2)
G04886668Courtesy of NISSAN NORTH AMERICA, INC.

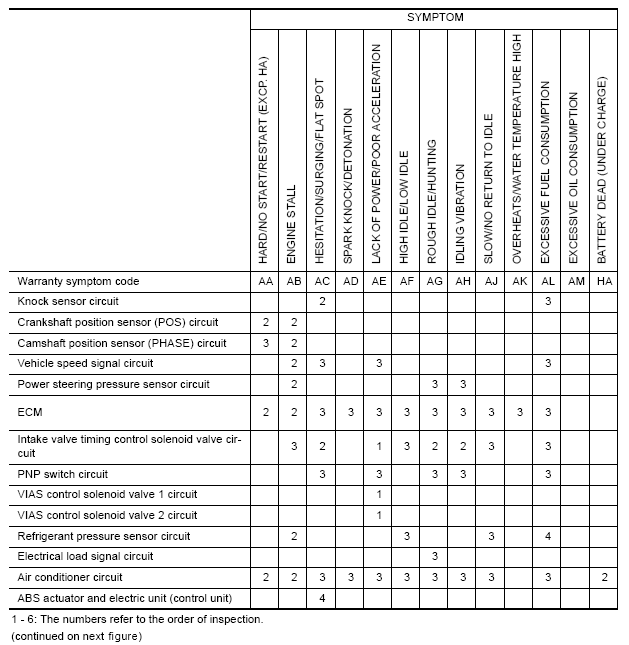

Fig 2: Symptom Chart For System Basic Engine Control System (2 Of 2)
G04886669Courtesy of NISSAN NORTH AMERICA, INC.
