Component Parts Location

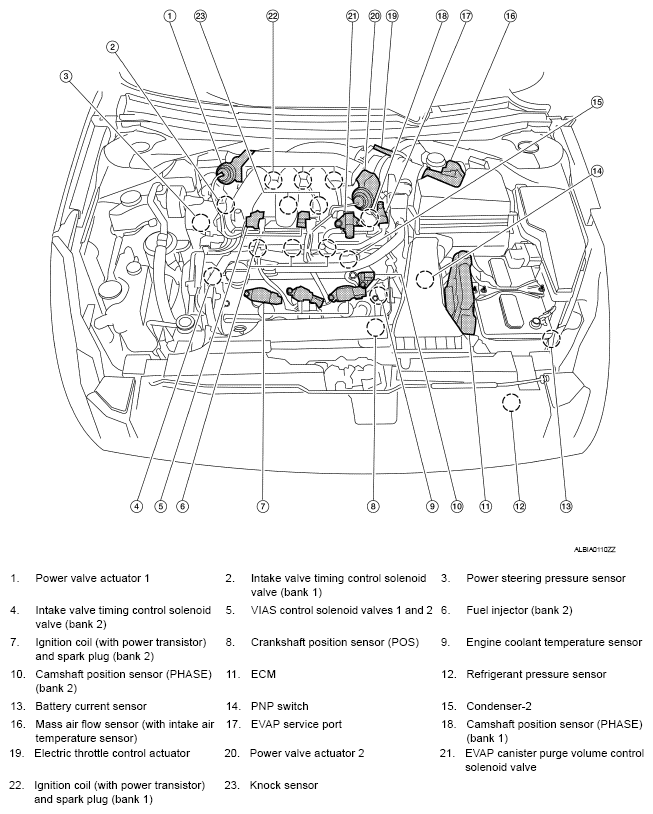

Fig 1: Identifying Engine Control System Components (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Identifying Engine Control System Components (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: Identifying Engine Control System Components (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Identifying Engine Control System Components (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: Identifying Engine Control System Components (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: Identifying Engine Control System Components (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Identifying Engine Control System Components (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
