Engine Control Component Parts/Control Systems Application

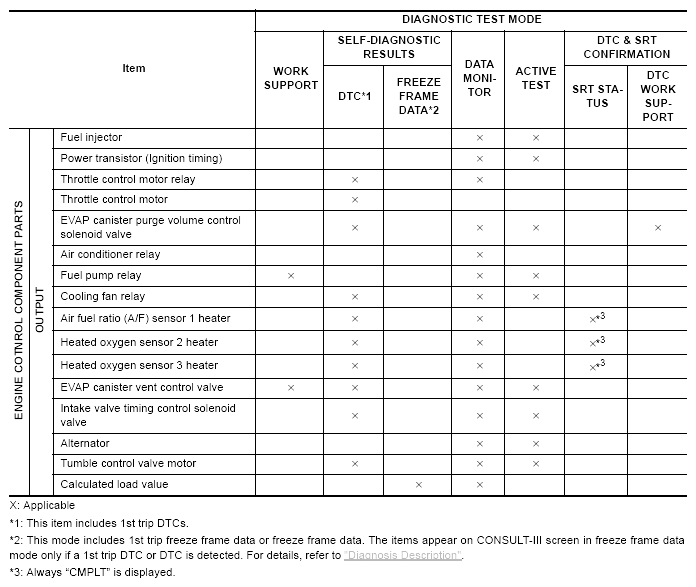

Fig 1: Diagnostic Test Mode Reference Chart (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

For Diagnosis Description, go to DIAGNOSIS DESCRIPTION .

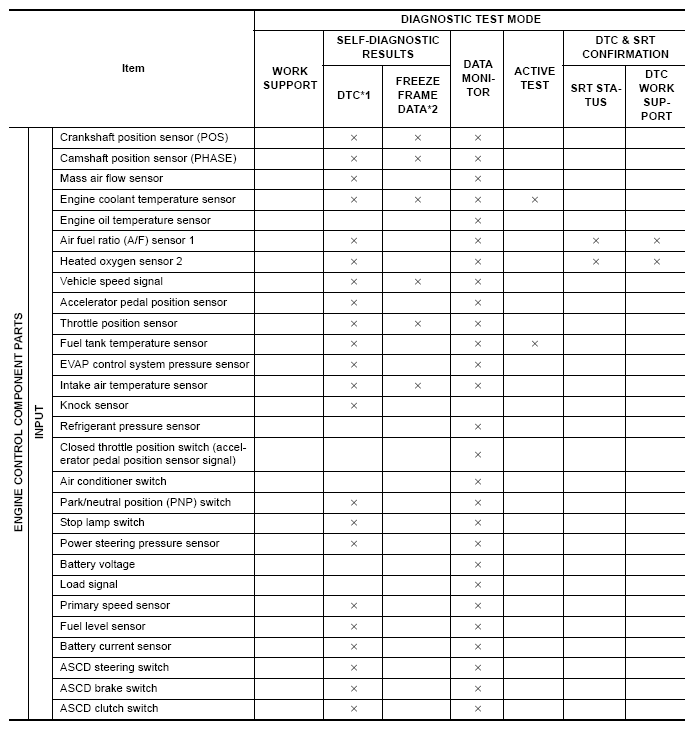

Fig 2: Diagnostic Test Mode Reference Chart (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
