Frontier XE, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Introduction (Qr)
>>
Engine Control System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

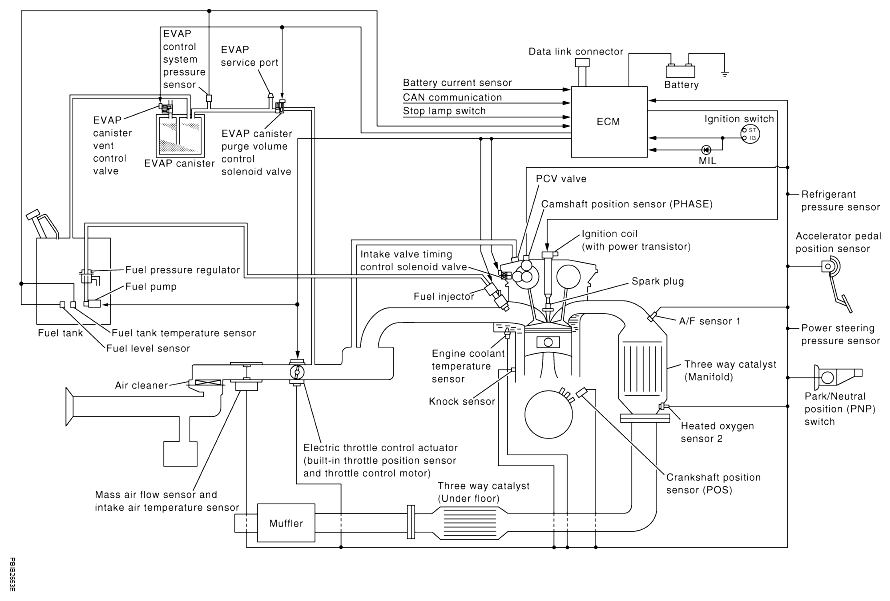

Fig 1: Engine Control System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
