Write Configuration Procedure

WARNING: This page is about a different car, the 2006 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Locating Data Link Connector
    G04160173Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: Consult-II SELECT TEST ITEM Display Screen
    G04136565Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    Fig 5: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.

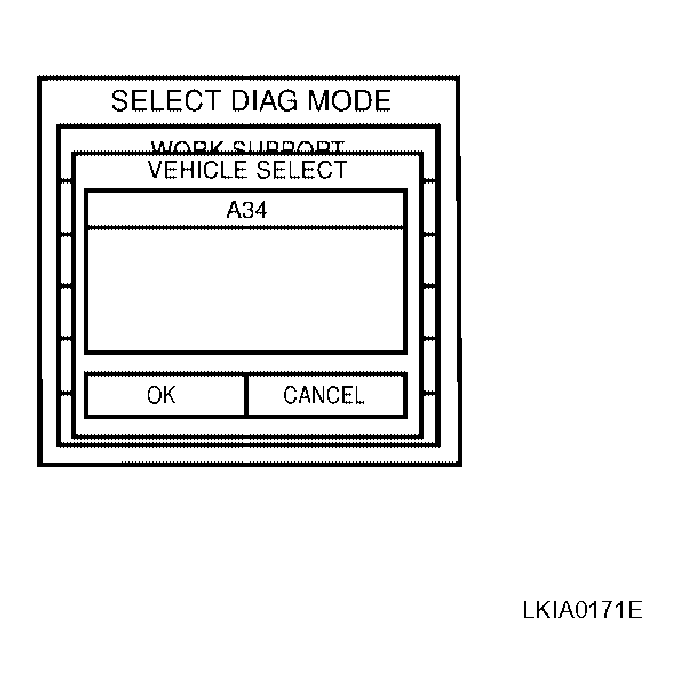

  6. Touch "A34" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model. Refer to "MODEL VARIATION " in GI article.
    Fig 6: CONSULT II SELECT DIAG MODE Screen
    G04163708Courtesy of NISSAN MOTOR CO., U.S.A.

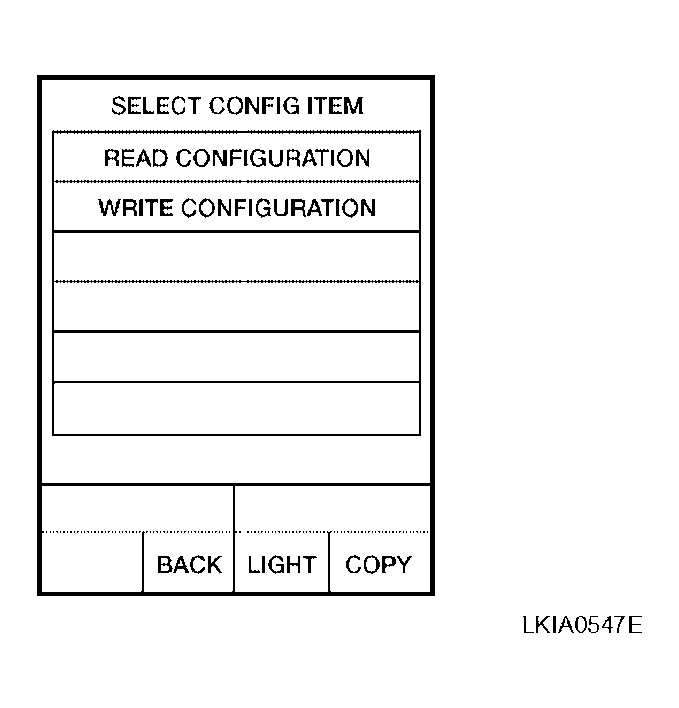

  7. Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.
    Fig 7: CONSULT II SELECT CONFIG ITEM Screen
    G04163709Courtesy of NISSAN MOTOR CO., U.S.A.

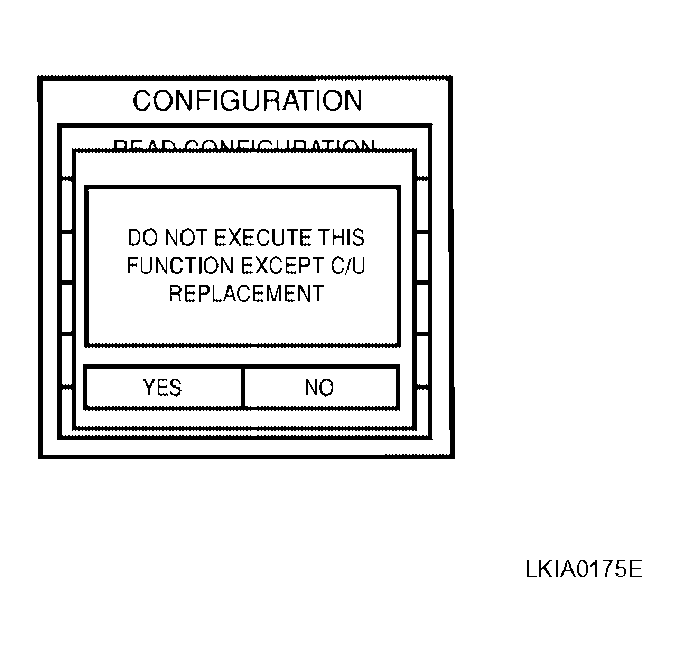

  8. Touch "YES".

    For canceling, touch "NO".

    Fig 8: CONSULT II CONFIGURATION Screen
    G04163710Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WITH" or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.
    ITEM LIST

    ITEM SET VAL
    DTRL WITH <==> WITHOUT
    NOTE: Confirm vehicle model. Refer to "MODEL VARIATION " in GENERAL INFORMATION article.
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.

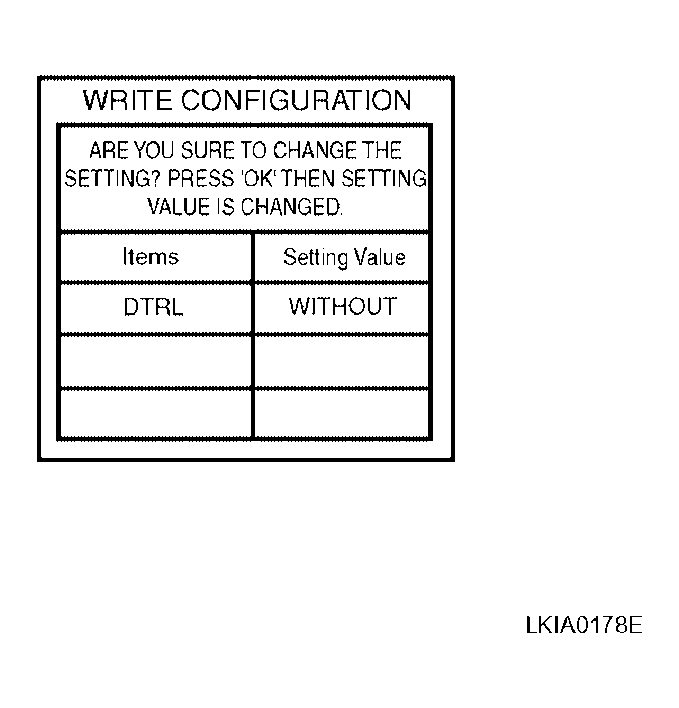

  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

    Fig 9: CONSULT II WRITE CONFIGURATION Screen
    G04163711Courtesy of NISSAN MOTOR CO., U.S.A.

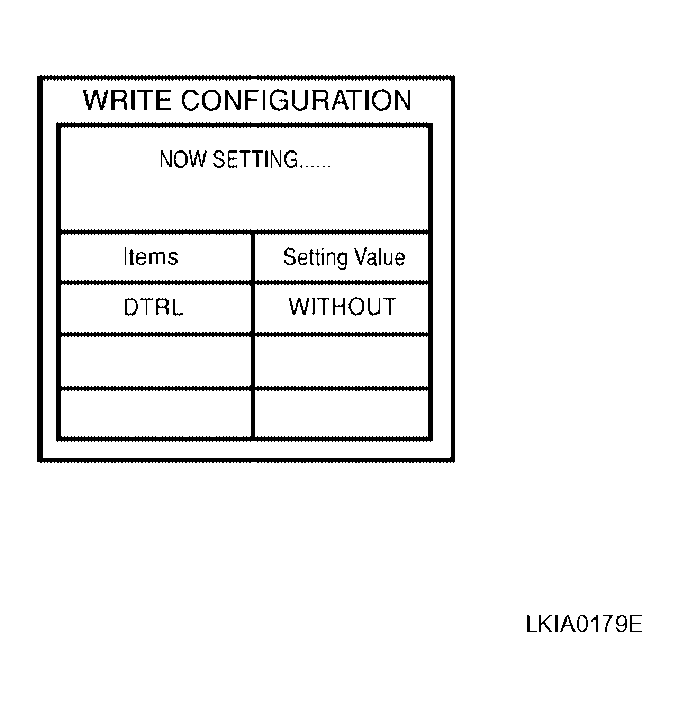

  12. Wait until the next screen during setting.
    Fig 10: CONSULT II WRITE CONFIGURATION Screen
    G04163712Courtesy of NISSAN MOTOR CO., U.S.A.

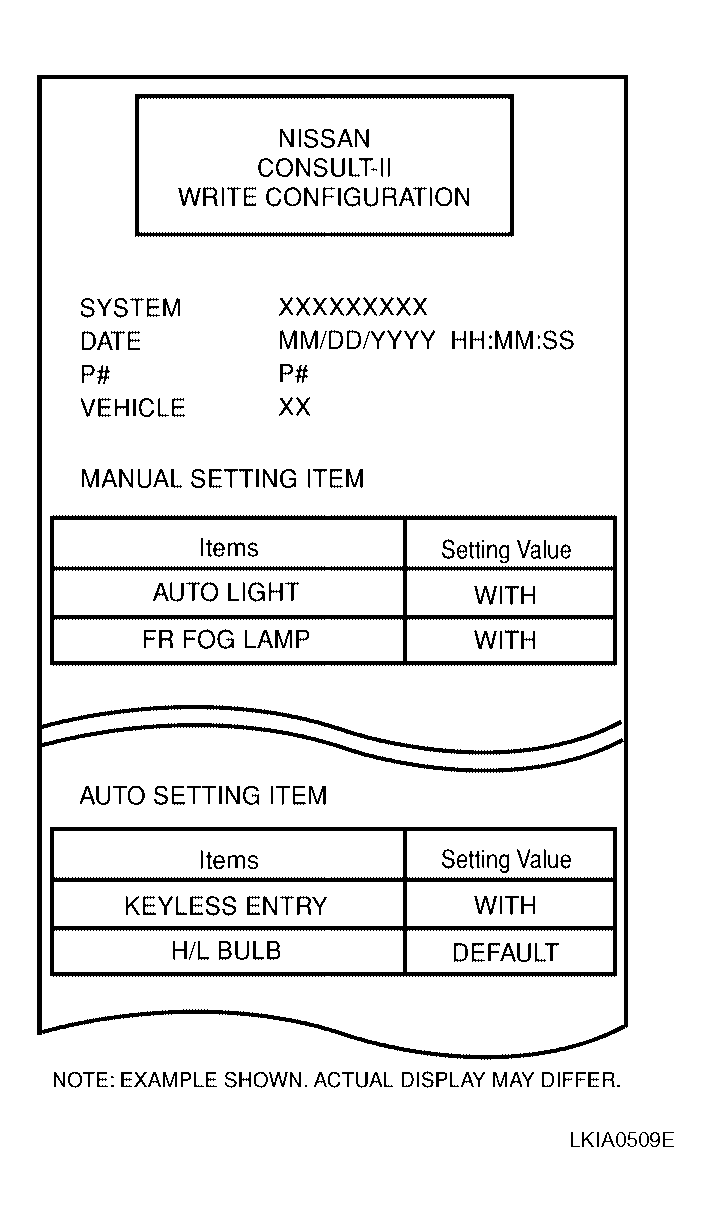

  13. WRITE CONFIGURATION results are printed out automatically. Check "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with desirable configuration.
    Fig 11: CONSULT II NISSAN WRITE CONFIGURATION Screen
    G04163713Courtesy of NISSAN MOTOR CO., U.S.A.

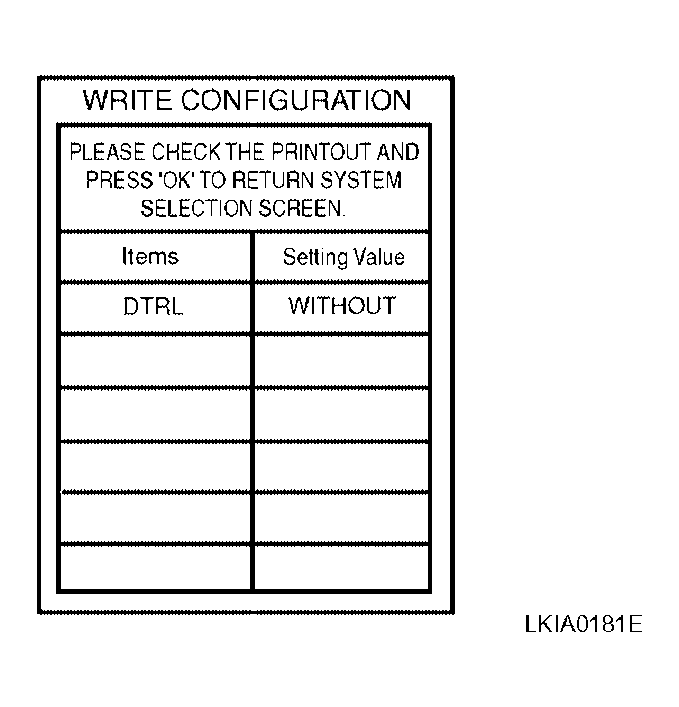

  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.
    Fig 12: CONSULT II WRITE CONFIGURATION Screen
    G04163714Courtesy of NISSAN MOTOR CO., U.S.A.
