Vacuum Hose Drawing

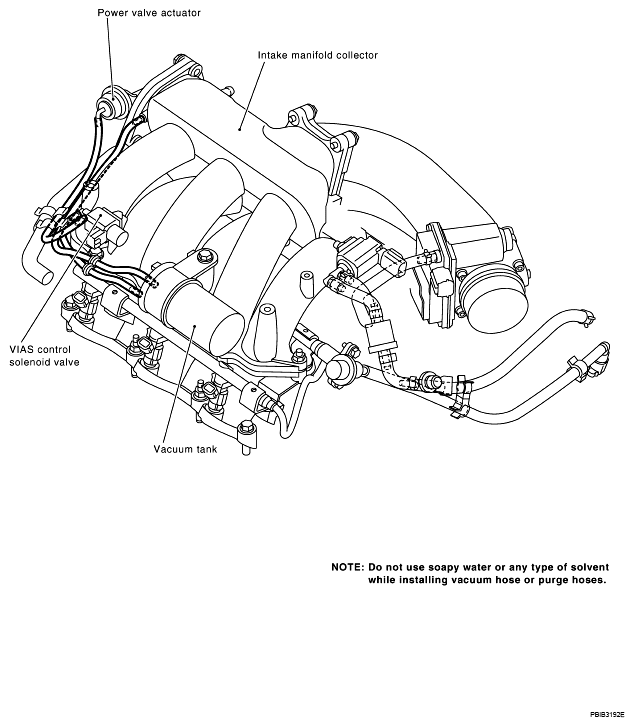

Fig 1: Identifying Vacuum Hose Drawing
G04920083Courtesy of NISSAN NORTH AMERICA, INC.

Refer to , "SYSTEM DIAGRAM " for Vacuum Control System.
