ASCD Indicator: Wiring Diagram

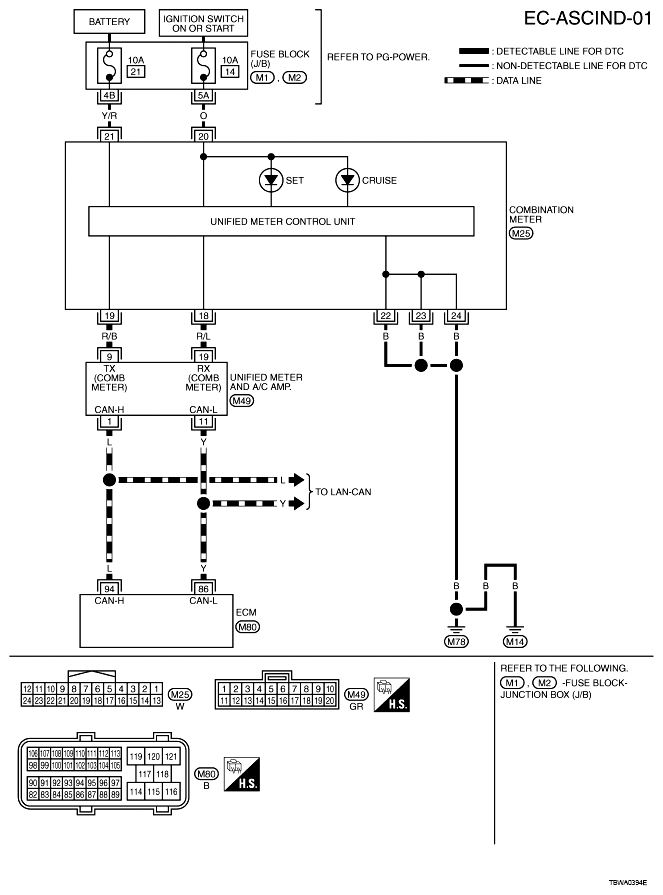

Fig 1: EC-ASCIND-01 - Wiring Diagram

G04920733

Courtesy of NISSAN NORTH AMERICA, INC.
