Mil And Data Link Connector: Wiring Diagram

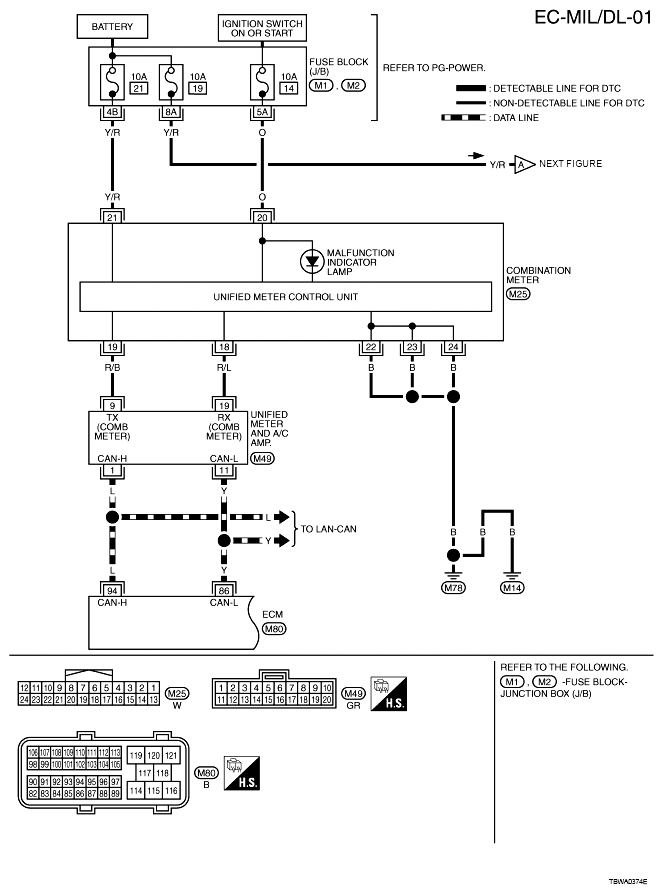

Fig 1: EC-MIL/DL-01 - Wiring Diagram
G04920803Courtesy of NISSAN NORTH AMERICA, INC.

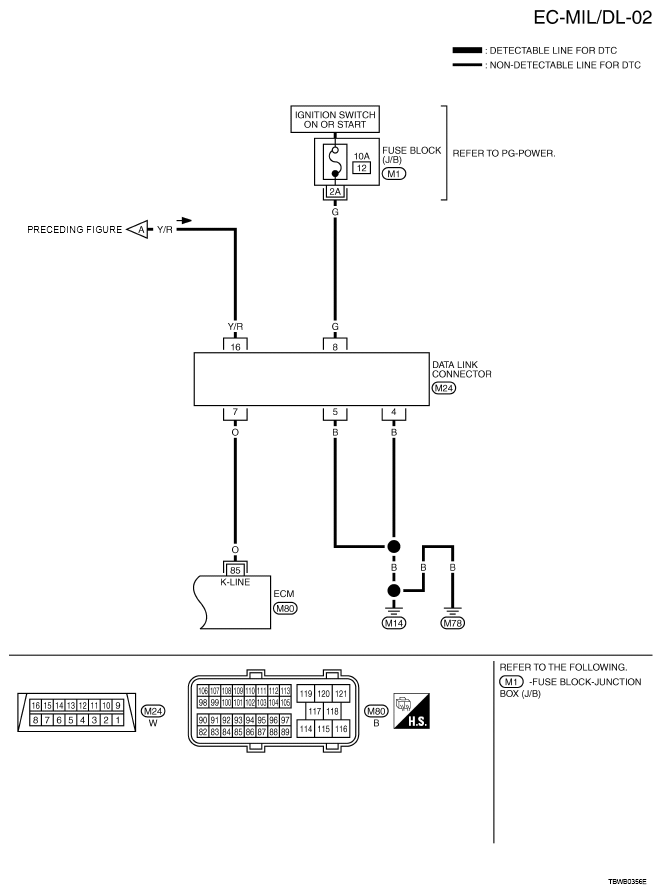

Fig 2: EC-MIL/DL-02 - Wiring Diagram
G04920804Courtesy of NISSAN NORTH AMERICA, INC.
