Method B

  1. Remove No. 1 ignition coil.
    Fig 1: Identifying No 4 Ignition Coil
    G04905113Courtesy of NISSAN NORTH AMERICA, INC.
  2. Connect No. 1 ignition coil and spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.
    Fig 2: Attach Timing Light Clamp To No. 1 Ignition Coil Wire
    G04905116Courtesy of NISSAN NORTH AMERICA, INC.
    Fig 3: Attach Timing Light Clamp To Wire
    G04894500Courtesy of NISSAN NORTH AMERICA, INC.
  3. Check ignition timing.

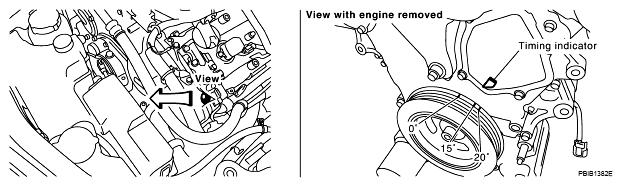

    Fig 4: Checking Ignition Timing
    G04920047Courtesy of NISSAN NORTH AMERICA, INC.
