Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

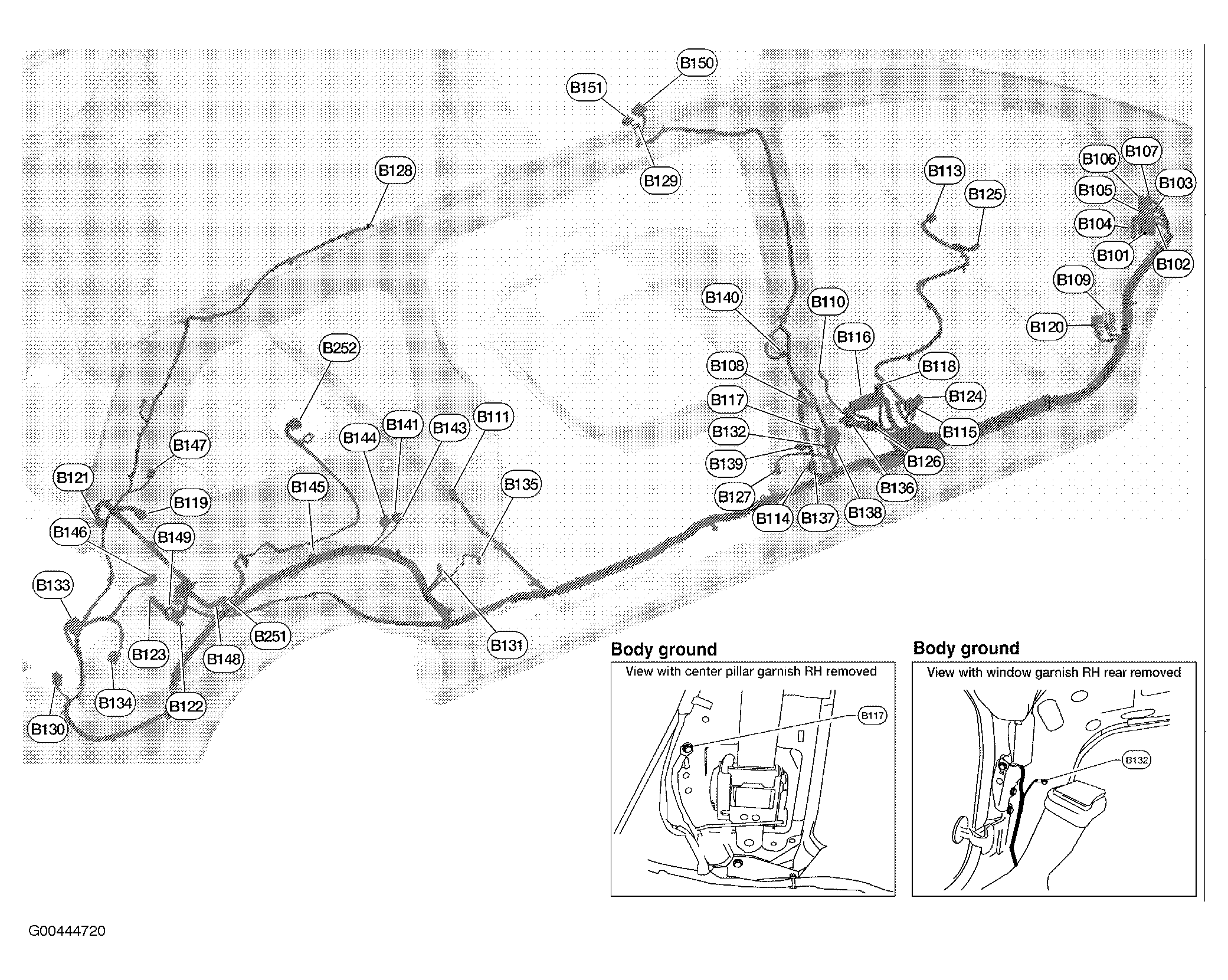

| Circuit Breaker No. 1 (B120) | At right kick panel. See Figure. |
| Circuit Breaker No. 2 (B44) | At left kick panel. See Figure. |

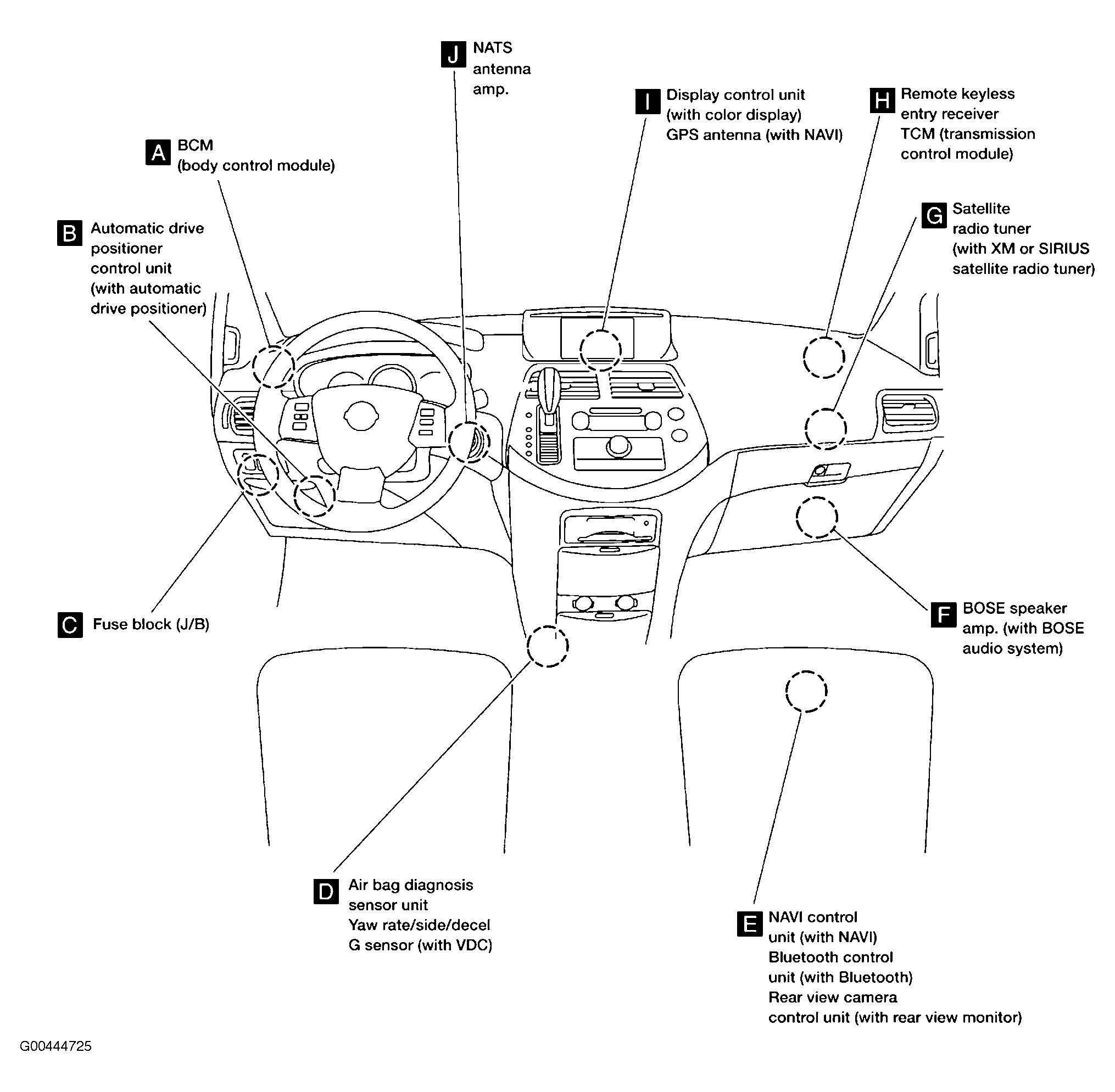

| Fuse Block (J/B) | Behind left side of dash. See Figure. |
| Fuse & Fusible Link Block | Left front of engine compartment. See Figure. |
| Fusible Link Holder | Left side of engine compartment. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) | Right side of engine compartment. See Figure. |
