Interior Lamp Operation Check

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INTERIOR LAMP
Check if the interior lamp switch is in the "ON" position and the lamp illuminates.

Does interior lamp illuminate?

Yes: GO TO 2.

No: Check the following.
- Harness for open or short between smart entrance control unit and interior lamp
- Interior lamp
CHECK INTERIOR LAMP OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "INT/IGN ILLUM" and touch "ON".

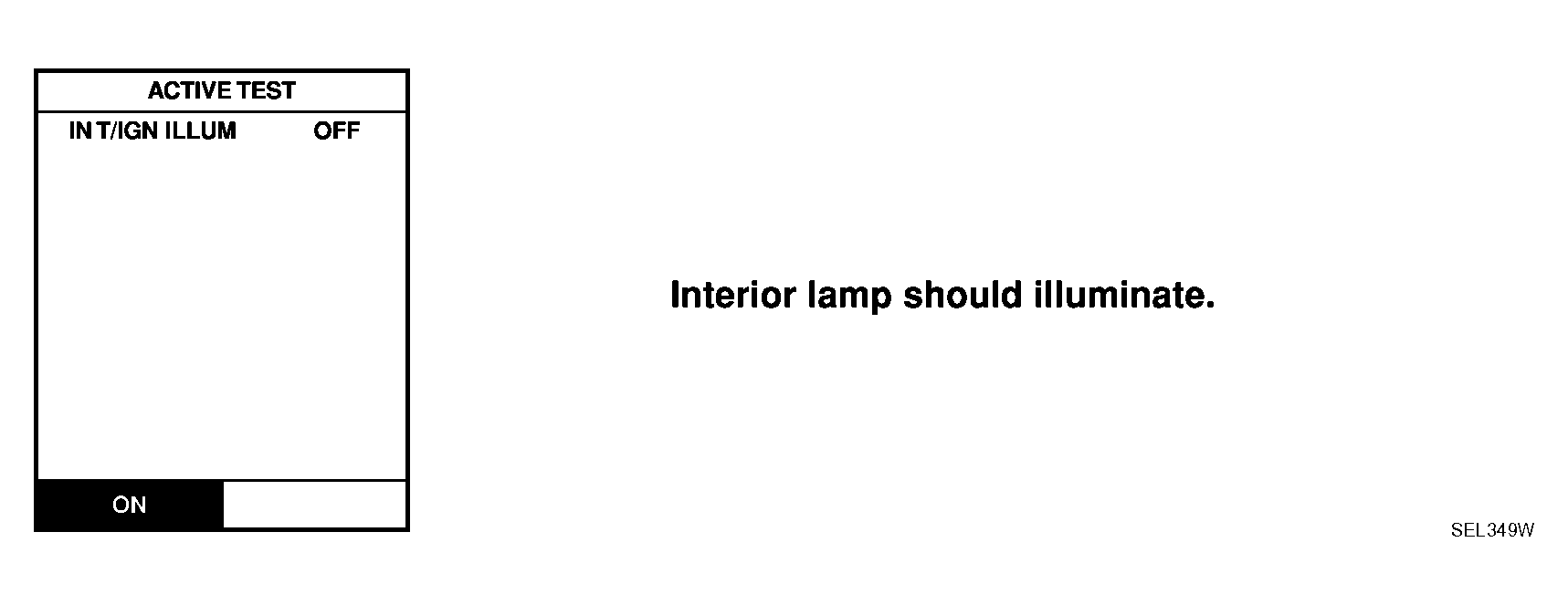

  Fig 1: CONSULT-II Display - Interior Lamp
  Courtesy of NISSAN MOTOR CO., U.S.A.
Without CONSULT-II

Push unlock button of keyfob with all doors closed, and check voltage between smart entrance control unit harness connector terminal 8 and ground.

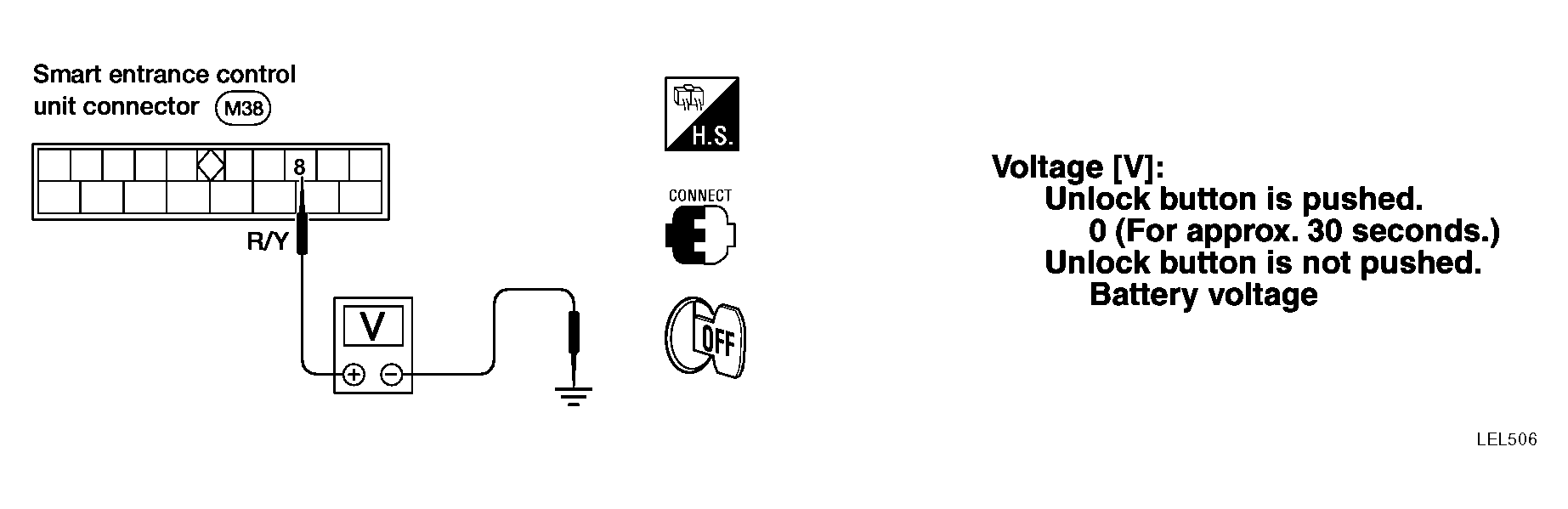

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminal 8 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 2 ".

OK or NG

OK: System is OK.

NG: Check harness open or short between smart entrance control unit and interior lamp.
