Vehicle Security Lamp Relay
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

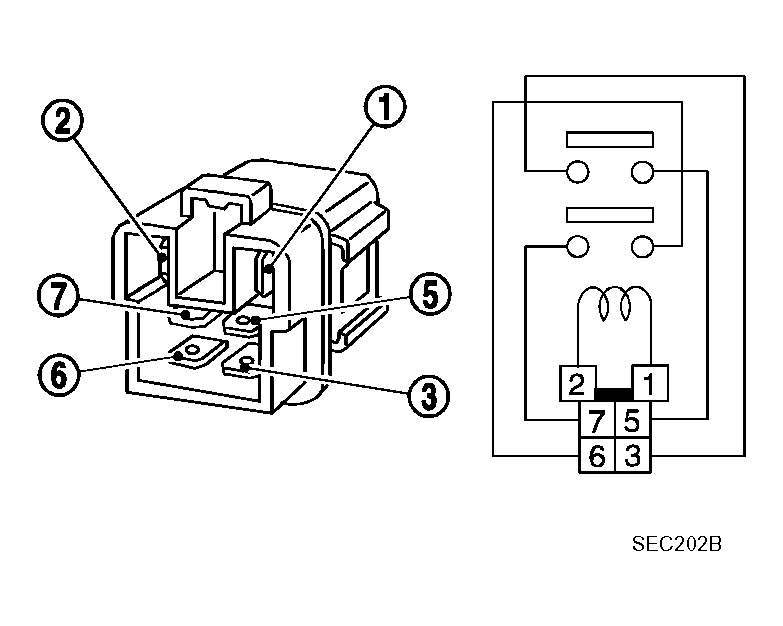

Check continuity between terminals 3 and 5, 6 and 7.
TERMINALS CONTINUITY CHART
| Condition |
Continuity |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| No current supply |
No |
Courtesy of NISSAN MOTOR CO., U.S.A.
