Security Indicator Lamp Check

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INDICATOR LAMP OPERATION
With CONSULT-II
1. Select "ACTIVE TEST" in "THEFT WAR ALM" with CONSULT-II.
2. Select "THEFT IND" and touch "ON".
  Security indicator lamp should illuminate.

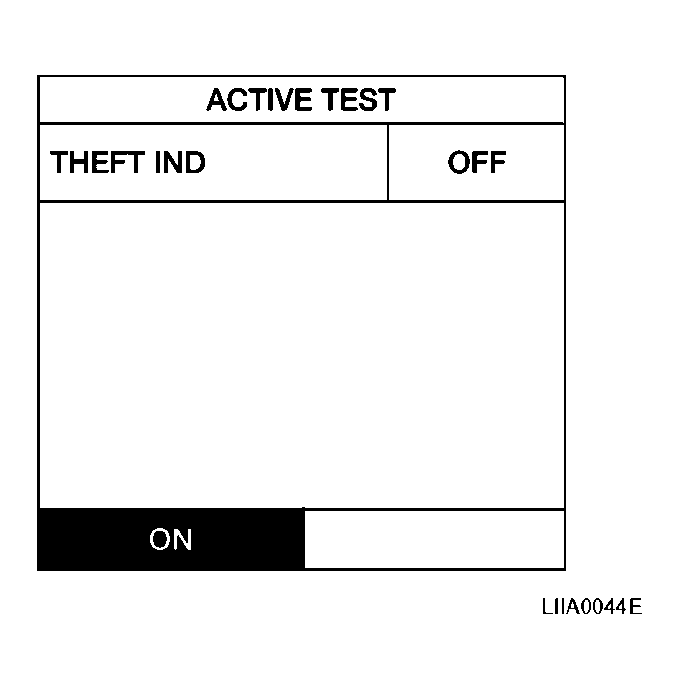

Fig 1: CONSULT-II Display - ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect smart entrance control unit harness connector.
2. Check voltage between smart entrance control unit harness connector terminal 31 and ground.

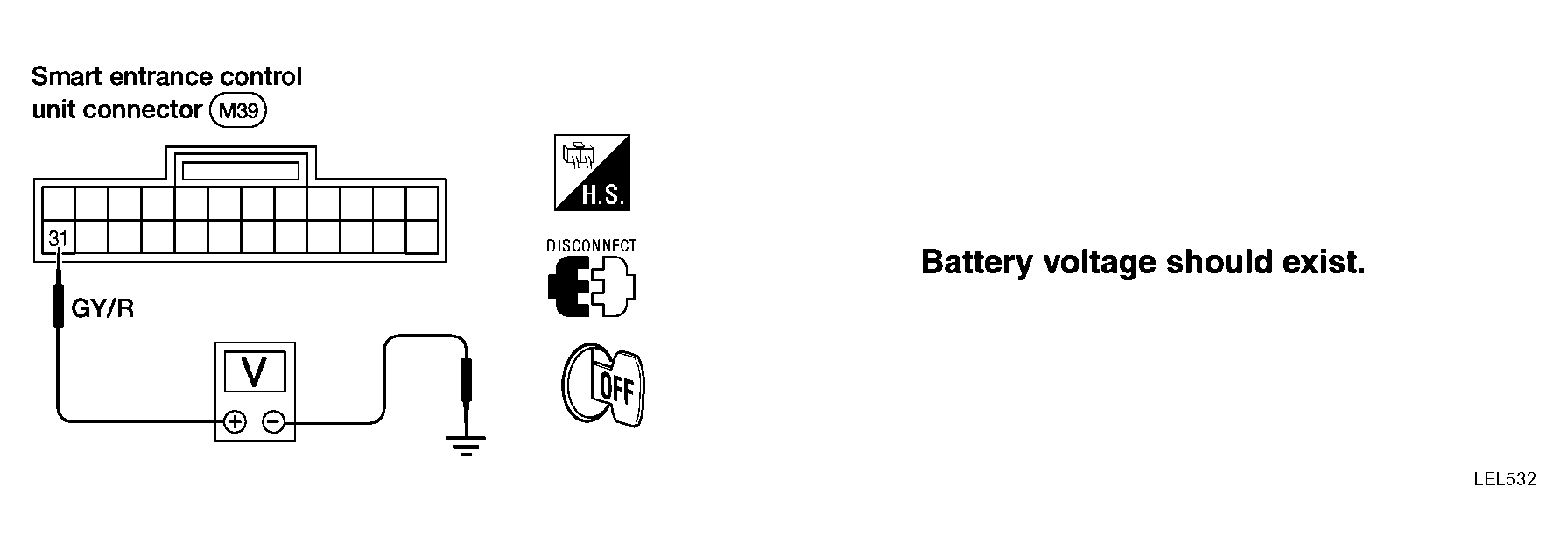

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminal 31 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "FIG. 1 ".

OK or NG

OK: Security indicator lamp is OK.

NG: GO TO 2.
CHECK SECURITY INDICATOR LAMP
Refer to "FIG. 1 ".

OK or NG

OK: GO TO 3.

NG: Replace security indicator lamp.
CHECK POWER SUPPLY CIRCUIT FOR SECURITY INDICATOR LAMP
1. Disconnect security indicator lamp connector.
2. Check voltage between security indicator lamp terminal 1 and ground.

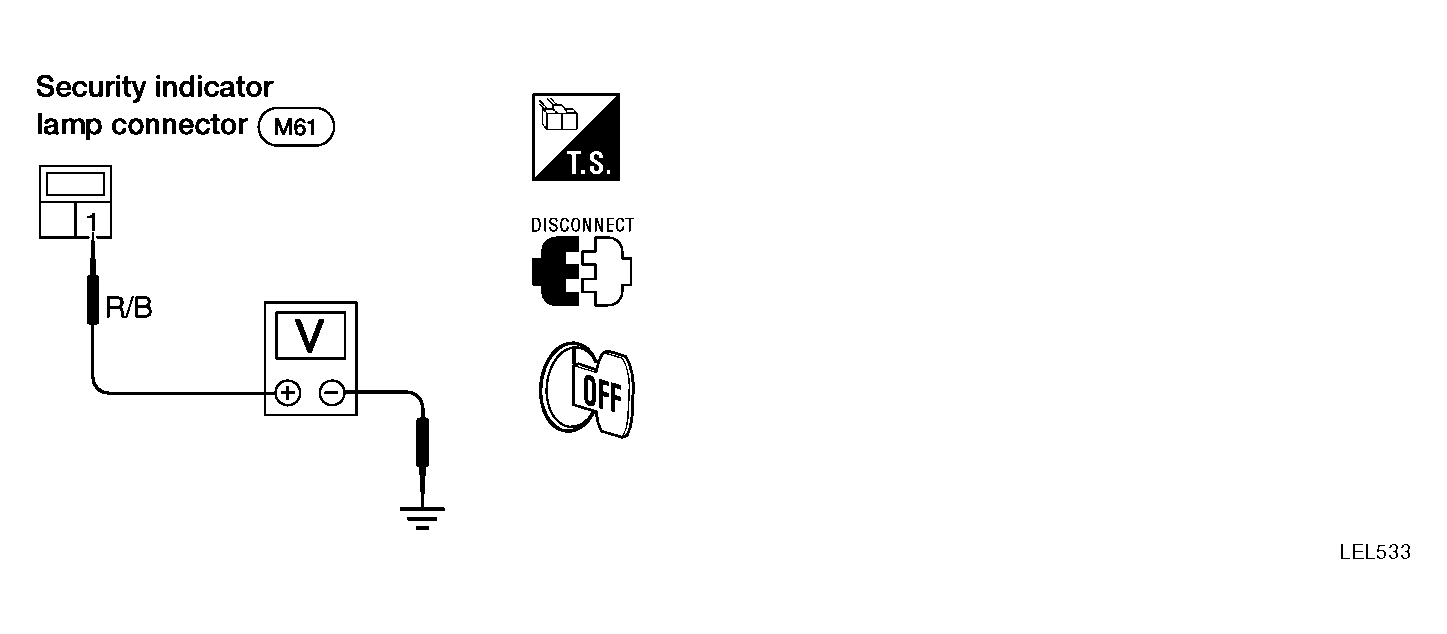

Fig 3: Checking Voltage Between Security Indicator Lamp Terminal 1 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Does battery voltage exist?

Yes: Check harness for open or short between security indicator lamp and smart entrance control unit.

No: Check the following.
- 10A fuse [No. 12, located in fuse block (J/B)]
- Harness for open or short between security indicator lamp and fuse
