Removal and Installation: Components

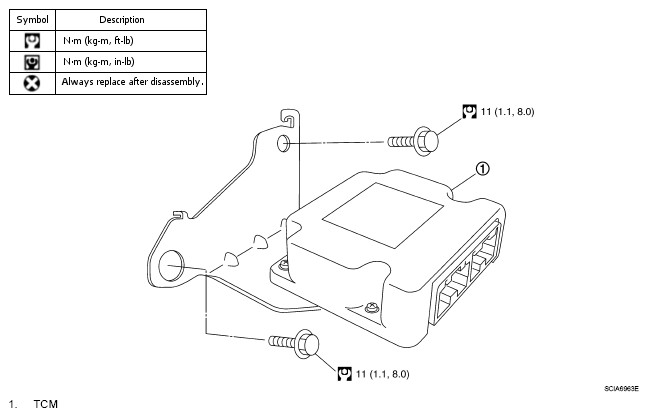

Fig 1: Transmission Control Module Replacement Components With Torque Specifications
G04927093
