Fuse Circuits

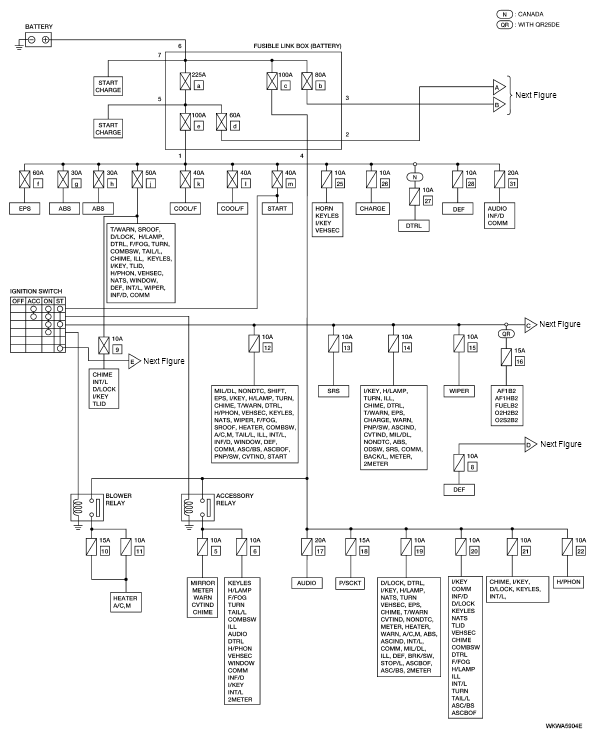

Fig 1: Power Supply Routing Schematic (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

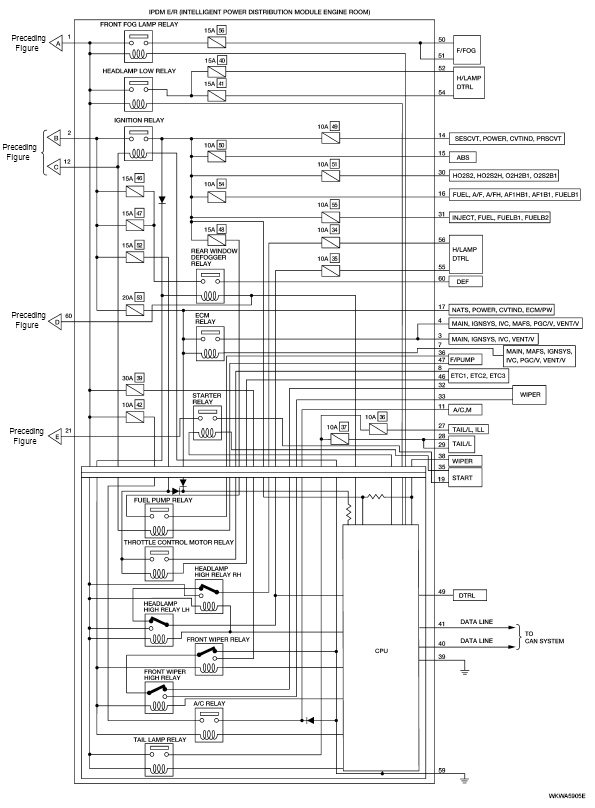

Fig 2: Power Supply Routing Schematic (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

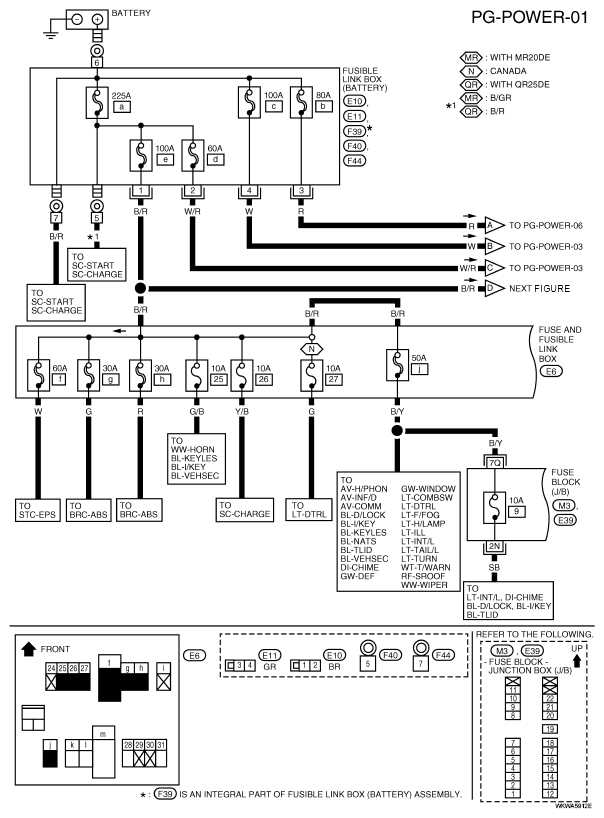

Fig 3: Wiring Diagram PG-POWER-01

Courtesy of NISSAN MOTOR CO., U.S.A.

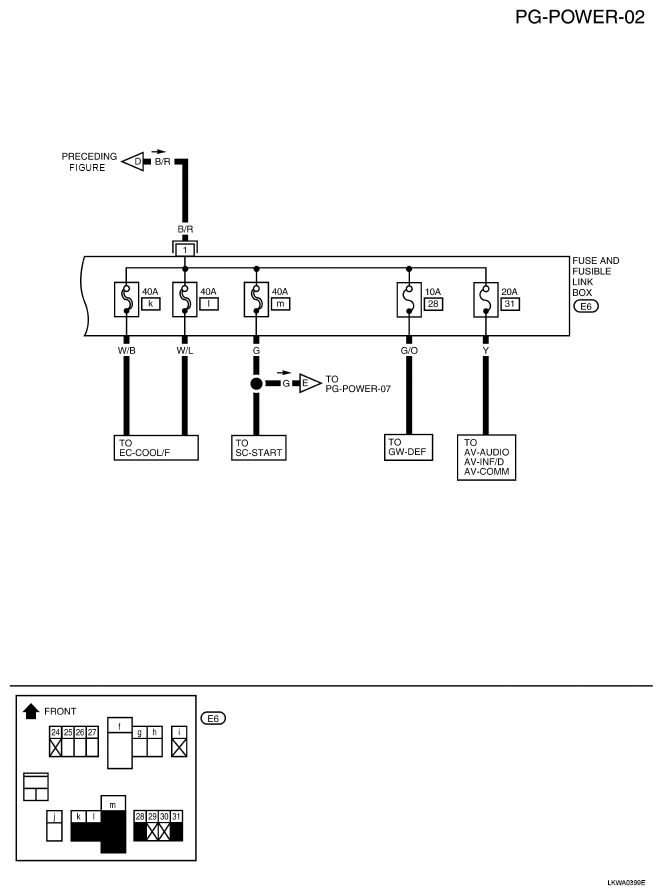

Fig 4: Wiring Diagram PG-POWER-02

Courtesy of NISSAN MOTOR CO., U.S.A.

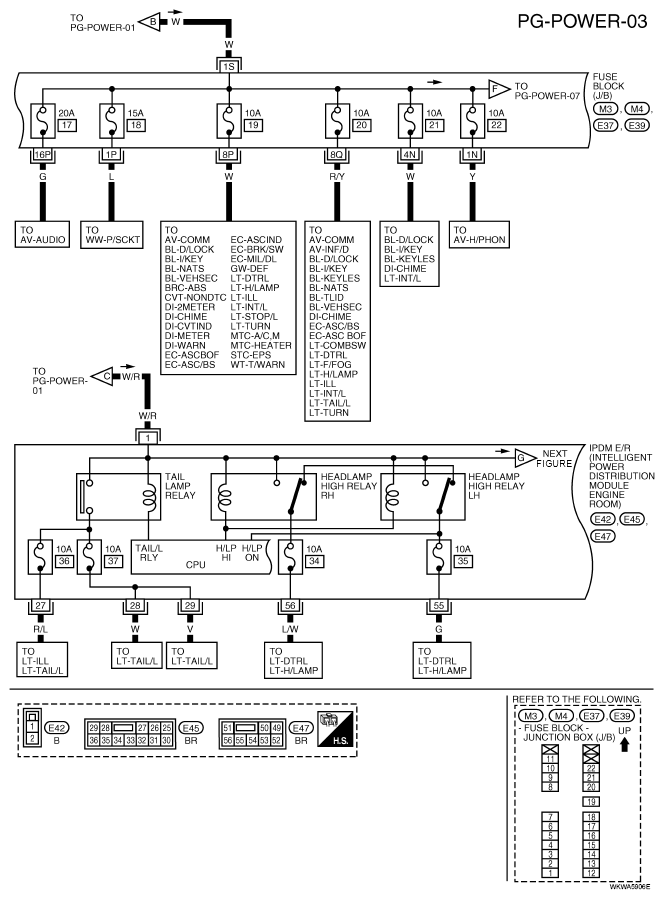

Fig 5: Wiring Diagram PG-POWER-03

Courtesy of NISSAN MOTOR CO., U.S.A.

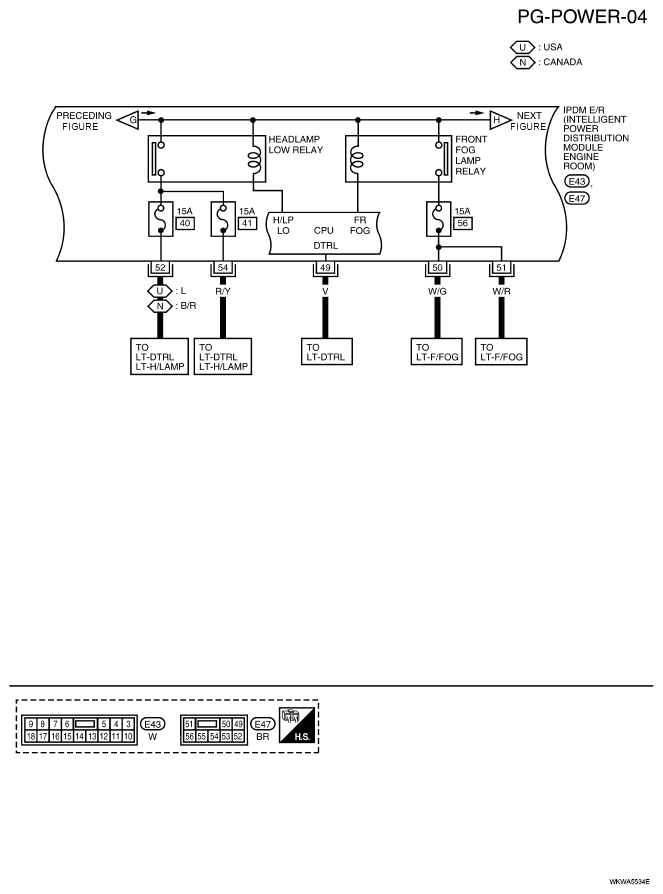

Fig 6: Wiring Diagram PG-POWER-04

Courtesy of NISSAN MOTOR CO., U.S.A.

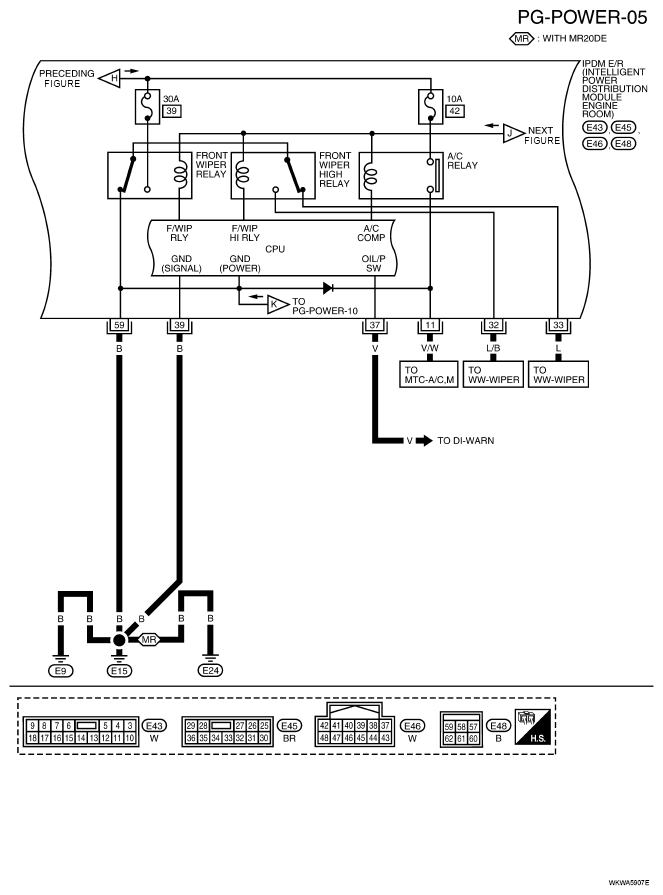

Fig 7: Wiring Diagram PG-POWER-05

Courtesy of NISSAN MOTOR CO., U.S.A.

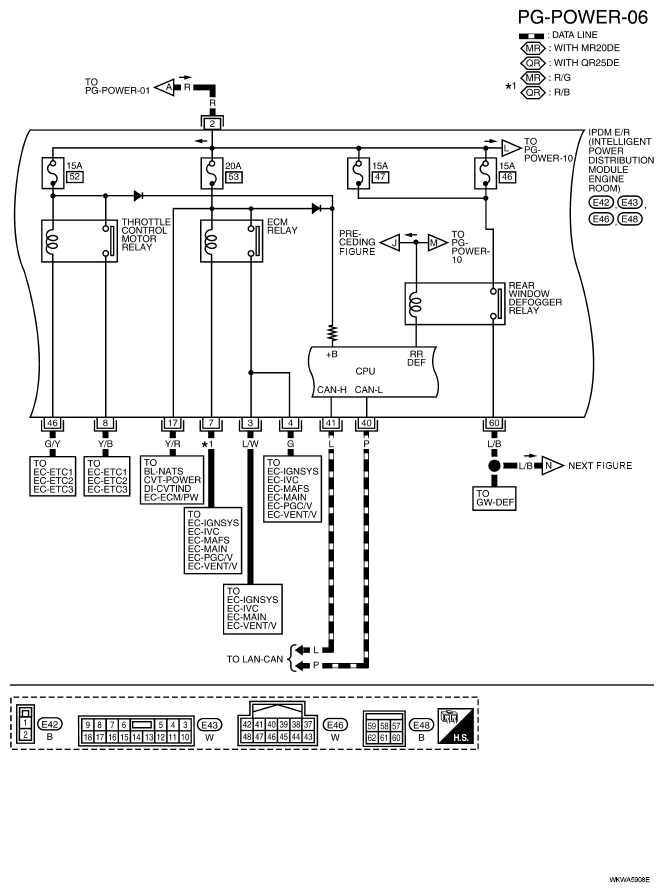

Fig 8: Wiring Diagram PG-POWER-06

Courtesy of NISSAN MOTOR CO., U.S.A.

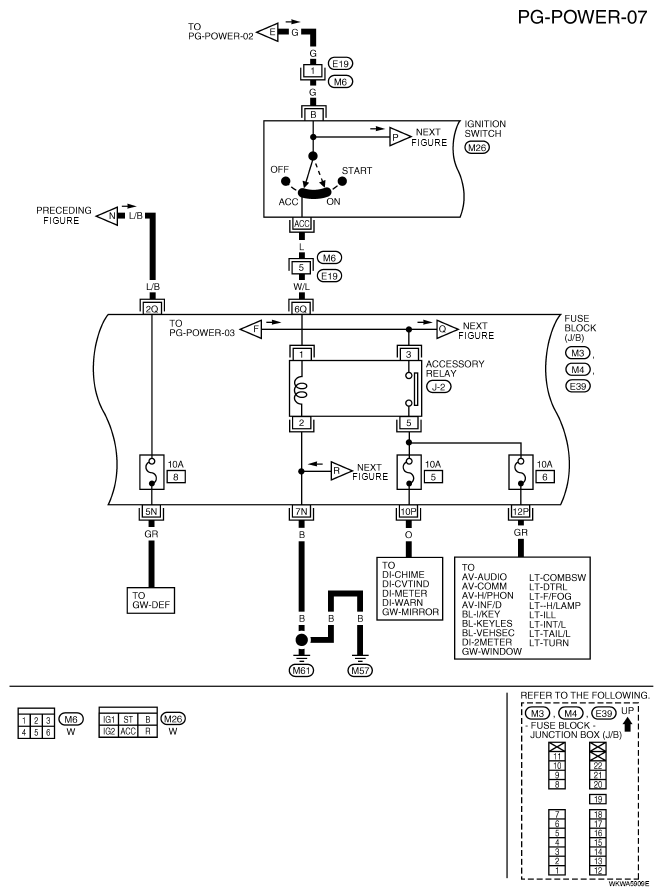

Fig 9: Wiring Diagram PG-POWER-07

Courtesy of NISSAN MOTOR CO., U.S.A.

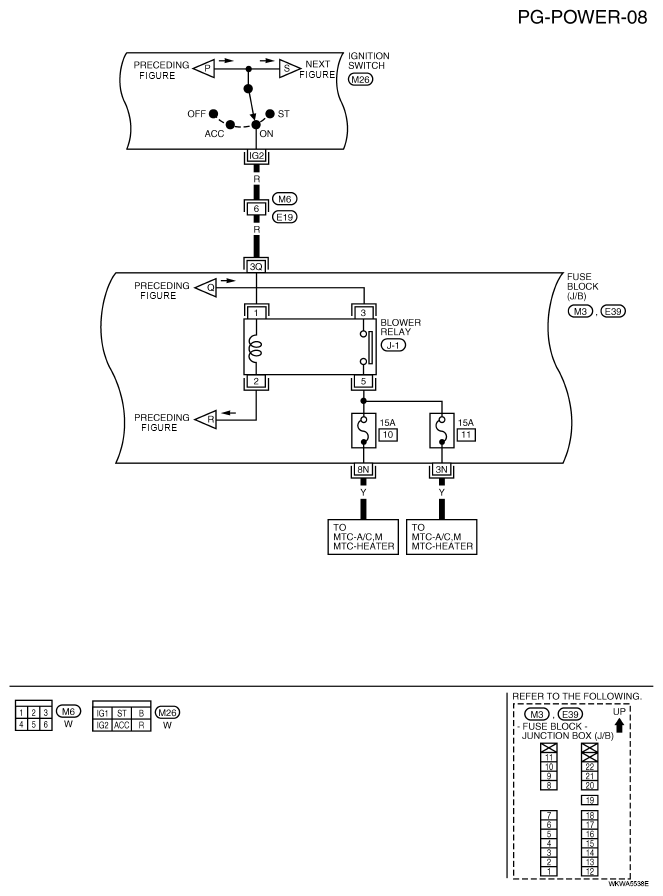

Fig 10: Wiring Diagram PG-POWER-08

Courtesy of NISSAN MOTOR CO., U.S.A.

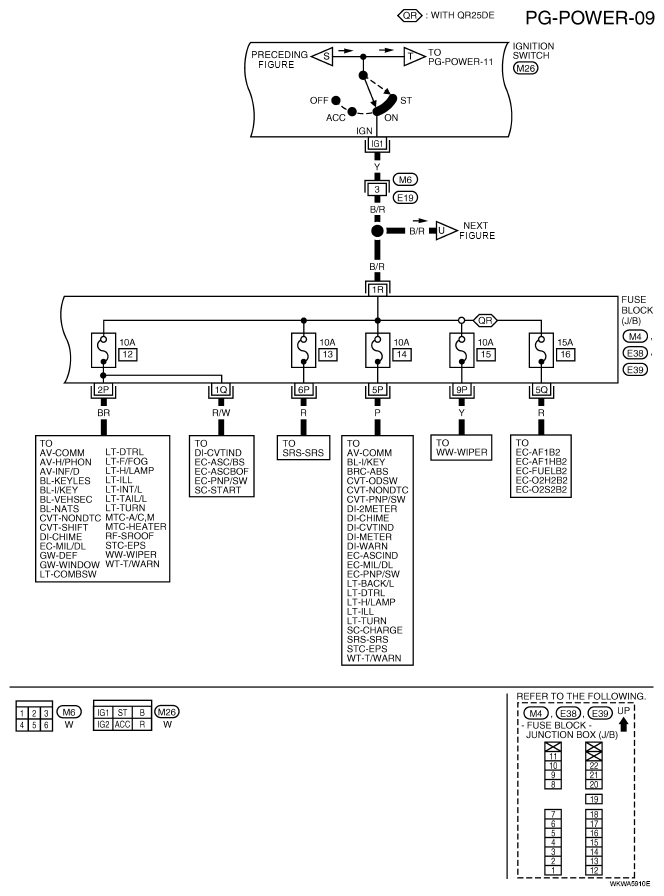

Fig 11: Wiring Diagram PG-POWER-09

Courtesy of NISSAN MOTOR CO., U.S.A.

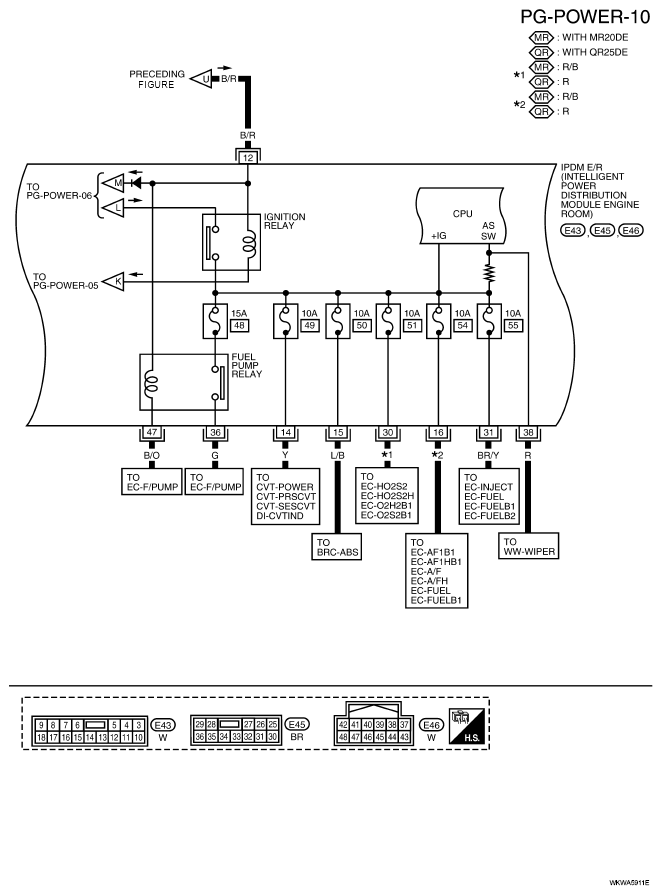

Fig 12: Wiring Diagram PG-POWER-10

Courtesy of NISSAN MOTOR CO., U.S.A.

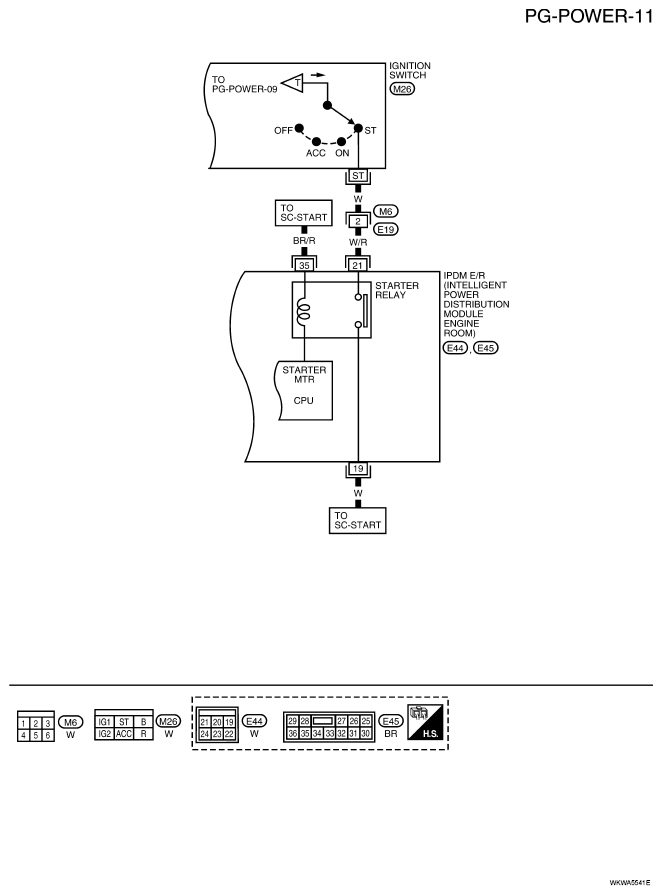

Fig 13: Wiring Diagram PG-POWER-11

Courtesy of NISSAN MOTOR CO., U.S.A.

Use the chart below to find out what each wiring diagram code stands for.

WIRING DIAGRAM CODES

Code	Section Wiring	Diagram Name
ABS	BRC	Anti-lock Brake System
A/C, M	MTC	Manual Air Conditioner
A/F	EC	Air Fuel Ratio Sensor 1
A/FH	EC	Air Fuel Ratio Sensor 1 Heater
A/F1B1	EC	Air Fuel Ratio Sensor 1 Bank 1
A/F1B2	EC	Air Fuel Ratio Sensor 1 Bank 2
A/F1HB1	EC	Air Fuel Ratio Sensor 1 Heater Bank 1
A/F1HB2	EC	Air Fuel Ratio Sensor 1 Heater Bank 2
APPS1	EC	Accelerator Pedal Position Sensor
APPS2	EC	Accelerator Pedal Position Sensor
APPS3	EC	Accelerator Pedal Position Sensor
ASC/BS	EC	ASCD Brake Switch
ASC/SW	EC	ASCD Steering Switch
ASCBOF	EC	ASCD Brake Switch
ASCIND	EC	ASCD Indicator
AUDIO	AV	Audio
BACK/L	LT	Back-up Lamp
BRK/SW	EC	Brake Switch
CAN	CVT	CAN Communication Line
CAN	EC	CAN Communication Line
CAN	LAN	CAN System
CHARGE	SC	Charging System
CHIME	DI	Warning Chime
COOL/F	EC	Cooling Fan Control
COMBSW	LT	Combination Switch
COMM	AV	Audio Visual Communication System
CVTIND	DI	CVT Indicator Lamp
D/LOCK	BL	Power Door Lock
DEF	GW	Rear Window Defogger
DTRL	LT	Headlamp - With Daytime Light System
ECM/PW	EC	ECM Power Supply For Back-up
ECTS	EC	Engine Coolant Temperature Sensor
EPS	STC	Electronic Controlled Power Steering
ETC1	EC	Electric Throttle Control Function
ETC2	EC	Throttle Control Motor Relay
ETC3	EC	Throttle Control Motor
F/FOG	LT	Front Fog Lamp
F/PUMP	EC	Fuel Pump
FTS	CVT	CVT Fluid Temperature Sensor Circuit
FTTS	EC	Fuel Tank Temperature Sensor
FUEL	EC	Fuel Ignition System Function
FUELB1	EC	Fuel Ignition System Function Bank1
FUELB2	EC	Fuel Ignition System Function Bank2
HEATER	MTC	Heater System
H/LAMP	LT	Headlamp
H/PHON	AV	Hands Free Telephone
HORN	WW	Horn
HO2S2	EC	Heated Oxygen Sensor 2
HO2S2H	EC	Heated Oxygen Sensor 2 Heater
IATS	EC	Intake Air Temperature Sensor
IGNSYS	EC	Ignition System
I/KEY	BL	Intelligent Key System
ILL	LT	Illumination
INJECT	EC	Injector
INT/L	LT	Room/Map, Vanity and Luggage Lamps
INF/D	AV	Vehicle Information and Integrated Switch System
IVC	EC	Intake Valve Timing Control Solenoid Valve
KEYLES	BL	Remote Keyless Entry System
KS	EC	Knock Sensor
LPSV	CVT	Line Pressure Solenoid Valve
L/USSV	CVT	Lock-up Select Solenoid Valve
MAFS	EC	Mass Air Flow Sensor
MAIN	EC	Main Power Supply and Ground Circuit
METER	DI	Speedometer, Tachometer, Temp. and Fuel Gauges
2METER	DI	Double Meter
MIL/DL	EC	Malfunction Indicator Lamp
MIRROR	GW	Door Mirror
MMSW	CVT	Manual Mode Switch
NATS	BL	Nissan Anti-Theft System
NONDTC	CVT	Non-detectable Item
ODSW	CVT	Overdrive Control Switch
O2H2B1	EC	Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2	EC	Heated Oxygen Sensor 2 Heater Bank 2
O2S2B1	EC	Heated Oxygen Sensor 2 Bank 1
O2S2B2	EC	Heated Oxygen Sensor 2 Bank 2
P/SCKT	WW	Power Socket
PGC/V	EC	EVAP Canister Purge Volume Control Solenoid Valve
PHASE	EC	Camshaft Position Sensor (PHASE)
PNP/SW	CVT	Park/Neutral Position Switch
PNP/SW	EC	Park/Neutral Position Switch
POS	EC	Crankshaft Position Sensor (POS)
POWER	CVT	Transmission Control Module (Power Supply)
PRE/SE	EC	EVAP Control System Pressure Sensor
PRIPS	CVT	Primary Pressure Sensor
PRSCVT	CVT	Primary Speed Sensor CVT (Revolution Sensor)
RP/SEN	EC	Refrigerant Pressure Sensor
SECPS	CVT	Secondary Pressure Sensor
SECPSV	CVT	Secondary Speed Sensor CVT (Revolution Sensor)
SEN/PW	EC	Sensor Power Supply
SESCVT	CVT	Secondary Pressure Sensor Solenoid Valve
SHIFT	CVT	CVT Shift Lock System
SROOF	RF	Sunroof
SRS	SRS	Supplemental Restraint System
START	SC	Starting System
STM	CVT	Step Motor
STOP/L	LT	Stop Lamp
TCV	CVT	Torque Converter Clutch Solenoid Valve
T/LID	BL	Trunk Lid Opener
T/WARN	WT	Low Tire Pressure Warning System
TAIL/L	LT	Parking, License and Tail Lamps
TPS1	EC	Throttle Position Sensor
TPS2	EC	Throttle Position Sensor
TPS3	EC	Throttle Position Sensor
TURN	LT	Turn Signal and Hazard Warning Lamps
VEHSEC	BL	Vehicle Security (Theft Warning) System
VENT/V	EC	EVAP Canister Vent Control Valve
WARN	DI	Warning Lamps
WINDOW	GW	Power Window
WIPER	WW	Front Wiper and Washer
