Board-On Lift

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

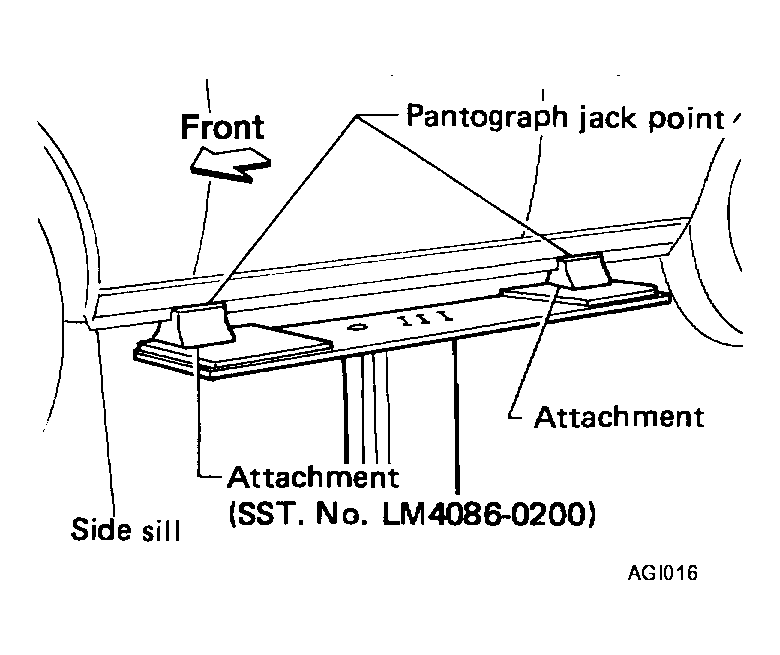

Fig 1: Identifying Board-On Lift Points
G04190095Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Make sure vehicle is empty when lifting.
  • The board-on lift attachment (LM4086-0200) set at front end of vehicle should be set on the front of the sill under the front door opening.
  • Position attachments at front and rear ends of board-on lift.
