Special Service Tools

WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS CHART

Tool number
(Kent-Moore number)
Tool name
Description
LM4086-0200
(-)

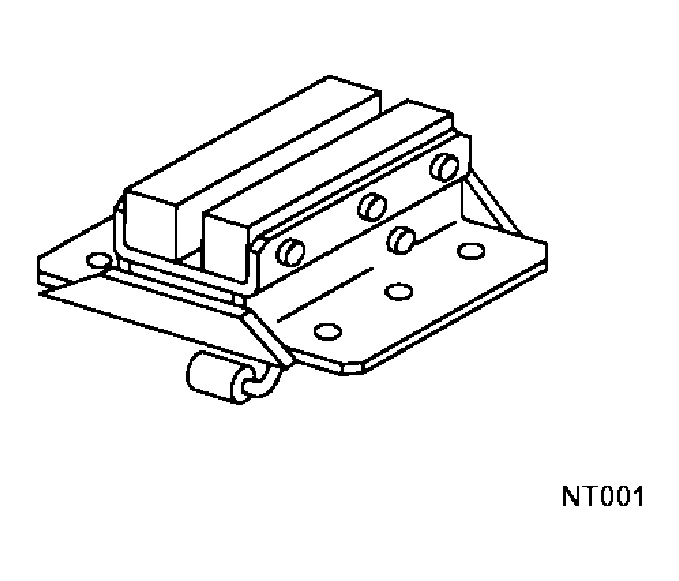

Board-on attachment
G04190091
LM4519-0000
(-)

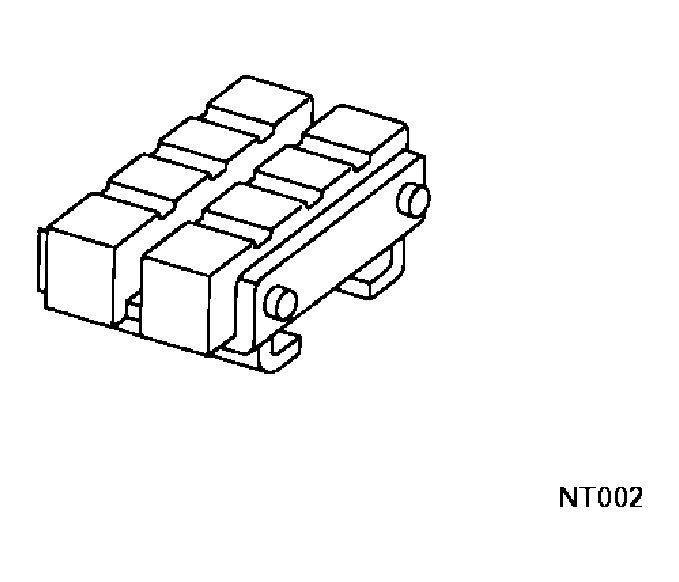

Safety stand attachment
G04190092
CAUTION:
  • Every time the vehicle is lifted up, maintain the complete vehicle curb condition.
  • Since the vehicle's center of gravity changes when removing main parts on the front side (engine, transmission, suspension, etc.), support the rear of the vehicle with a suitable jack.
  • Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle, suspension, etc.), support the front of the vehicle with a suitable jack.
  • Make sure not to damage piping parts when lifting vehicle.
