Removal and Installation: Installation
WARNING: This page is about a different car, the 2006 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Connect driver air bag harness connector.
- For removal/installation of the direct-connect SRS connectors, refer to "DIRECT-CONNECT SRS COMPONENT CONNECTORS ".

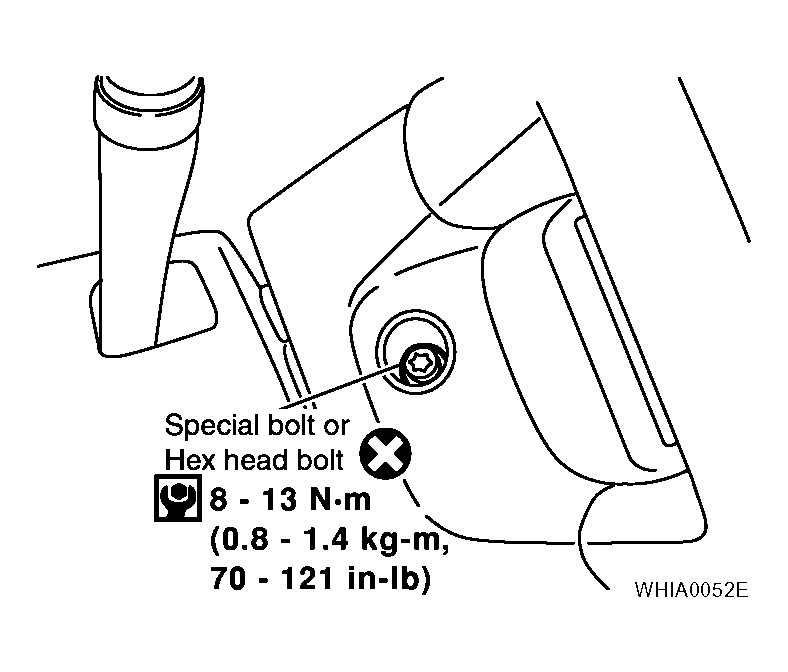

- Position driver air bag module, press firmly and tighten with new special bolts.
- Install ASCD steering switch (if equipped) and all lids.
- Connect both battery cables, then conduct self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.)
- Turn steering wheel to the left end and then to the right end fully to make sure that spiral cable is set in the neutral position.
If air bag warning lamp blinks or stays ON (at the user mode), it shows the spiral cable may be snapped due to its improper position. Perform self-diagnosis again (use CONSULT-II or warning lamp). Refer to "SRS OPERATION CHECK ". If a malfunction is detected, replace the spiral cable with a new one.
- Perform self-diagnosis again to check that no malfunction is detected. Go to "SRS OPERATION CHECK " and perform self-diagnosis to ensure entire SRS operates properly. (Use CONSULT-II or warning lamp check.)
