Wiring Diagram - CVT - SECPS: Notes

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

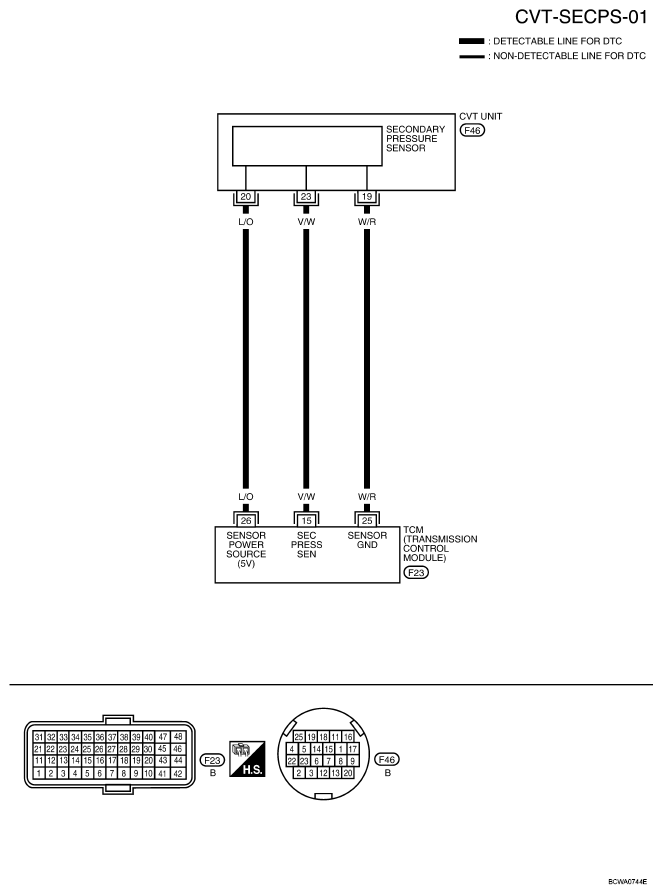

Fig 1: CVT-SECPS-01 - Wiring Diagram
G04927060Courtesy of NISSAN MOTOR CO., U.S.A.
