Work Flow

WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

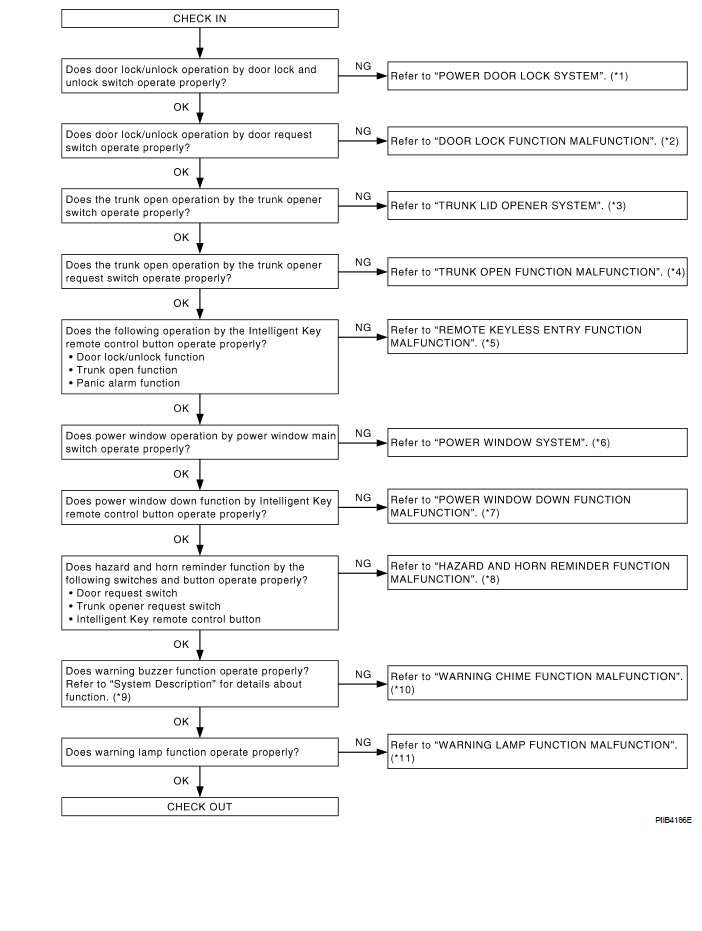

Fig 1: Intelligent Key System Work Flow Diagram

G05924683

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Component Parts and Harness Connector Location

*2: Trouble Diagnosis Symptom Chart

*3: Component Parts and Harness Connector Location

*4: Trouble Diagnosis Symptom Chart

*5: Trouble Diagnosis Symptom Chart

*6: COMPONENT PARTS AND HARNESS CONNECTOR LOCATION

*7: Trouble Diagnosis Symptom Chart

*8: Trouble Diagnosis Symptom Chart

*9: System Description

*10: Trouble Diagnosis Symptom Chart

*11: Trouble Diagnosis Symptom Chart
