Overview Air Conditioner LAN Control System
WARNING: This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
The LAN (local area network) system consists of front air control, air mix door motor, intake door motor, and mode door motor.

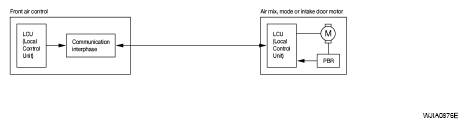

A configuration of these components is shown in the diagram below.
Courtesy of NISSAN MOTOR CO., U.S.A.
