Switches And Their Control Function
WARNING:
This page is about a different car, the 2009 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

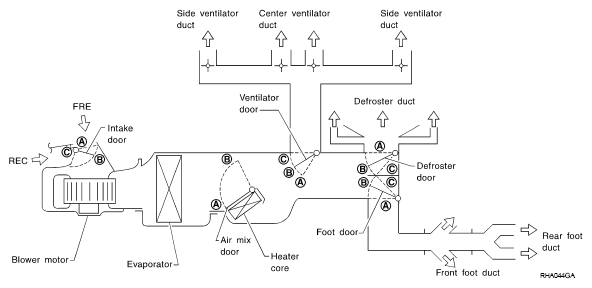

Fig 1: Switches And Their Control Function Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

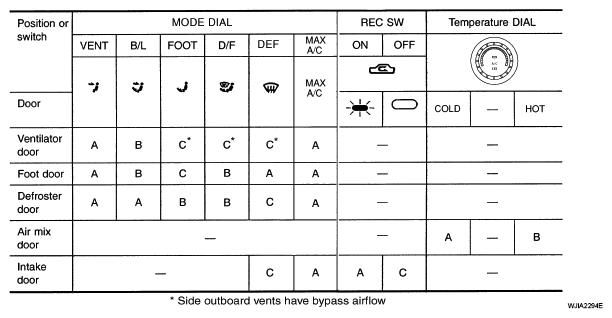

Fig 2: Switch Position Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
