Home >> Nissan-Datsun >> 2007 >> Sentra SE-R >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 4 (Manual Transmission) >> RS6F52A >> Transaxle Assembly >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

For Installation, go to INSTALLATION .

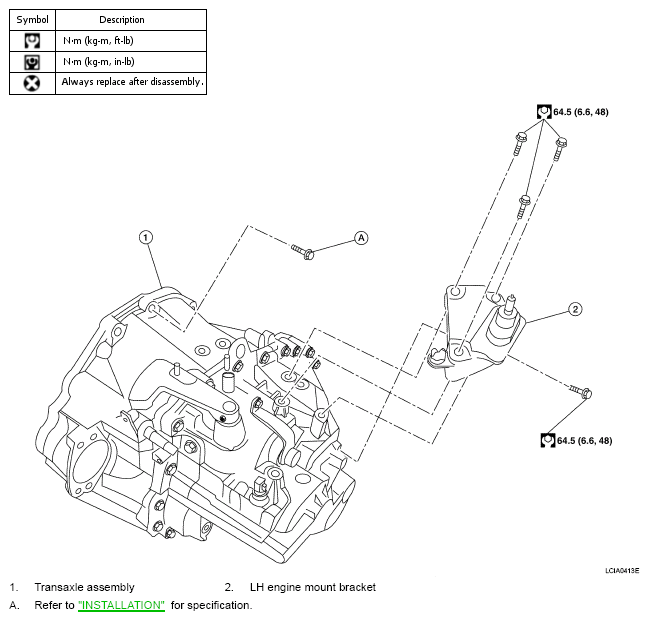

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G04926530

Refer to "COMPONENTS " for the symbols in the figure.
