Shift Control Components

WARNING: This page is about a different variant/trim than selected.

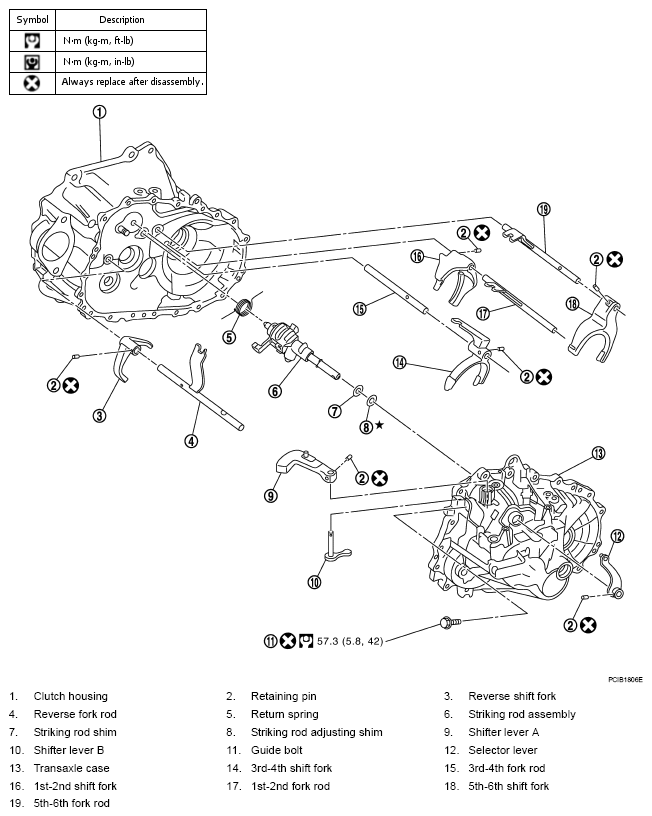

Fig 1: Shift Control Replacement Components With Torque Specifications
G04926535

Refer to "COMPONENTS " for the symbols in the figure.
