Components of Control Device and Cable

WARNING: This page is about a different variant/trim than selected.

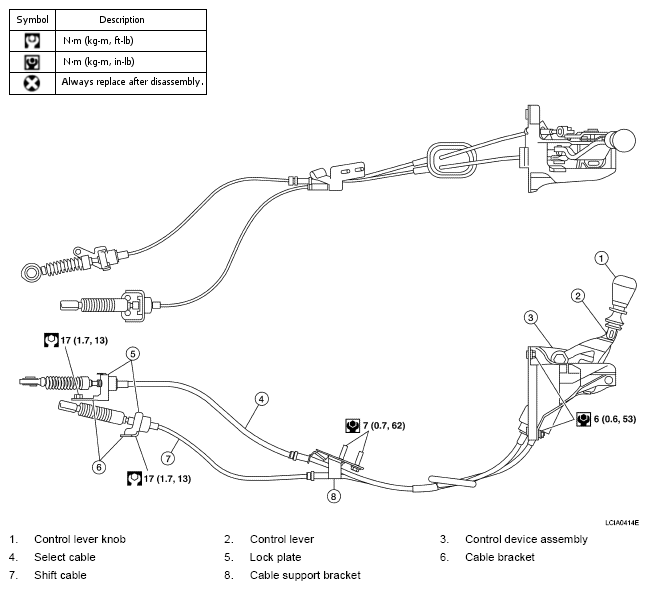

Fig 1: Control Device And Cable Replacement Components With Torque Specifications
G04926760

Refer to "COMPONENTS " for the symbols in the figure.
