Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

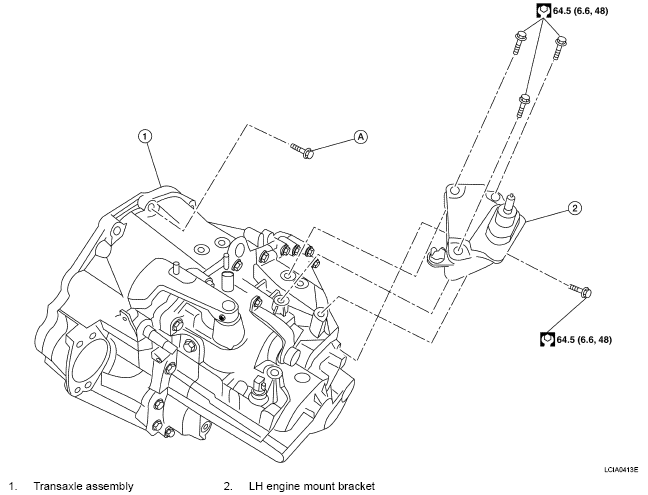

Fig 1: Identifying Transaxle Assembly Components
G04926765

A. Refer to "INSTALLATION " for specification.

Refer to "COMPONENTS " for the symbols in the figure.
