Gear Components

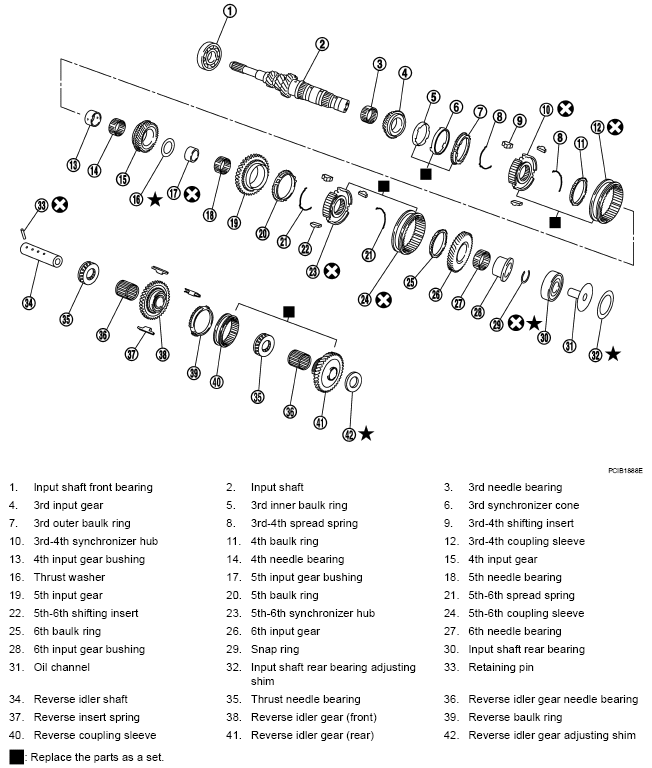

Fig 1: Exploded View Of Gear Components (1 Of 2)

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.

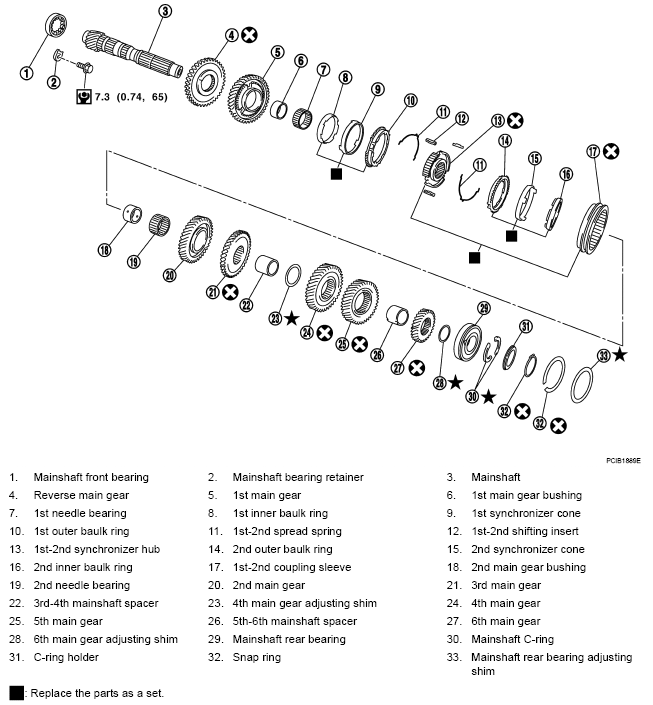

Fig 2: Exploded View Of Gear Components (2 Of 2)

Refer to "COMPONENTS " for symbols not described on the above.

• Apply gear oil to gears, shafts, synchronizers, and bearings when assembly.
