Transaxle Assembly: Components

WARNING: This page is about a different variant/trim than selected.

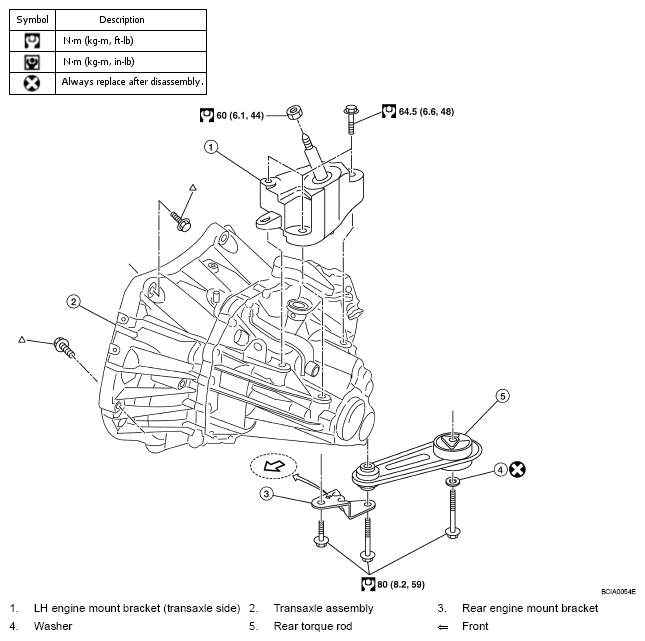

Fig 1: Transaxle Assembly Replacement Components With Torque Specifications
G04926382

Refer to "INSTALLATION " for specification.
