Shift Control Components

WARNING: This page is about a different variant/trim than selected.

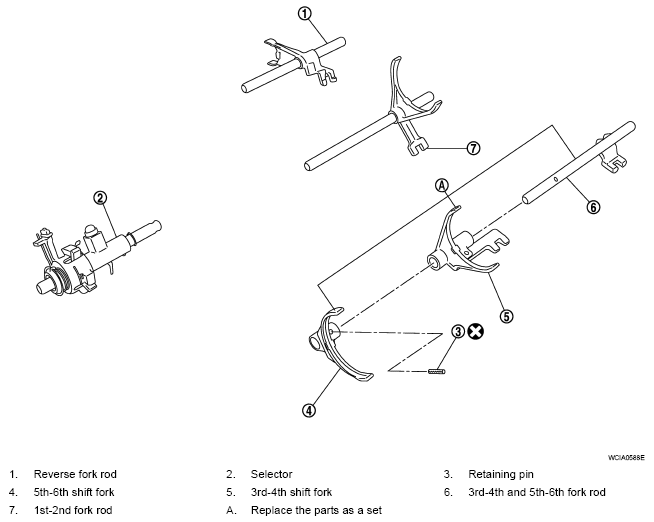

Fig 1: Identifying Shift Control Components
G04926388

Refer to "COMPONENTS " for the symbols in the figure.
