Wiring Diagram - CVT - SHIFT

For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

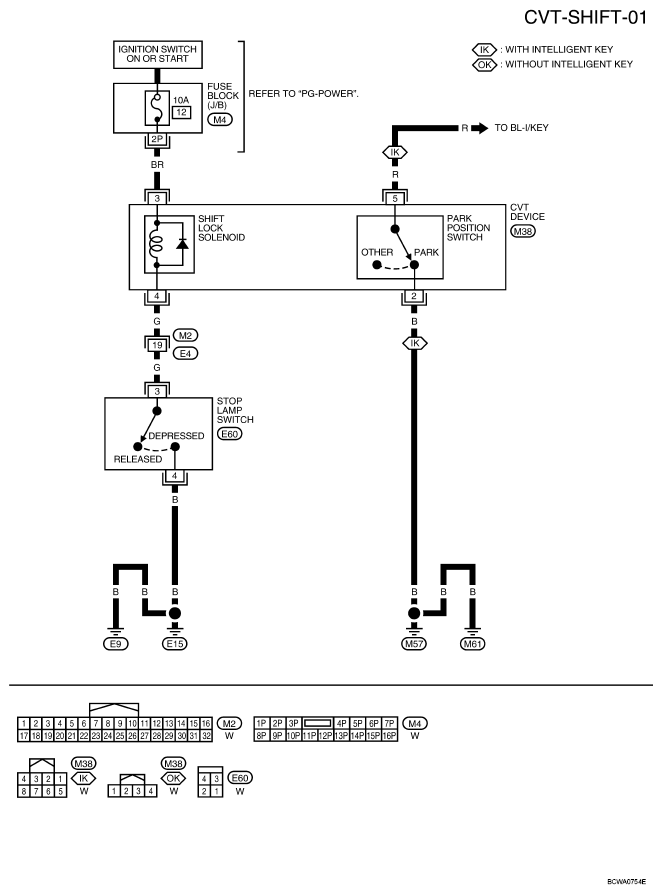

Fig 1: Wiring Diagram - CVT-SHIFT-01
G04927096
