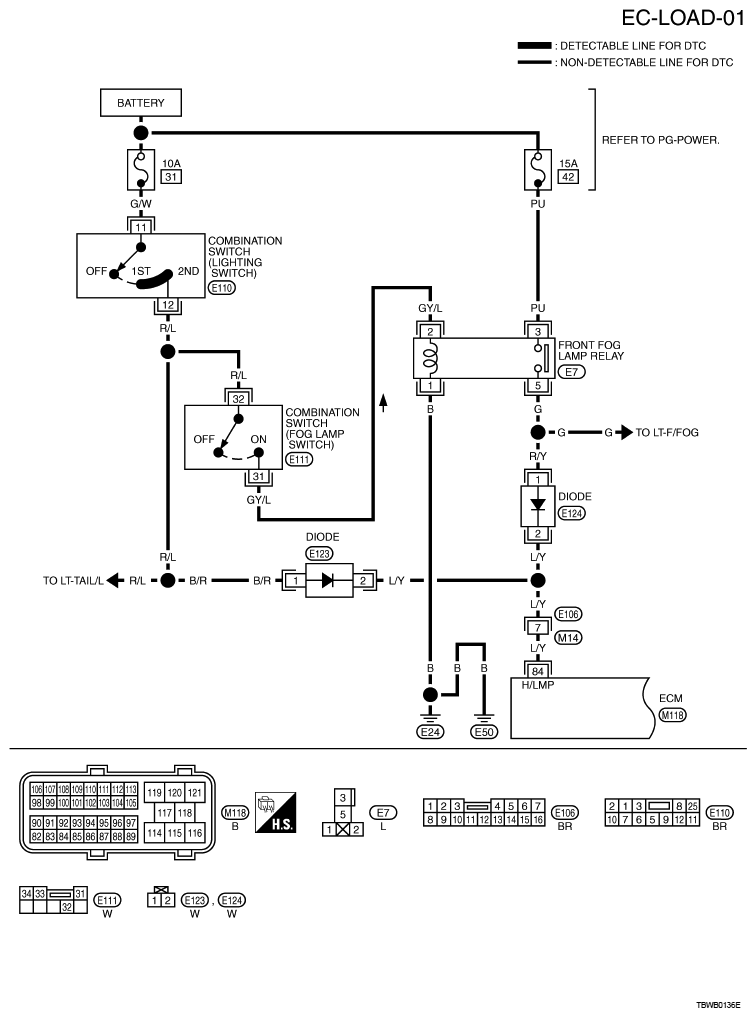

Electrical Load Signal: Wiring Diagram: Headlamp
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
ITEM CONDITION CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 84 | L/Y | Electrical load signal (Headlamp signal) | [Lighting switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
[Lighting switch: ON]
|
Approximately 0V |
